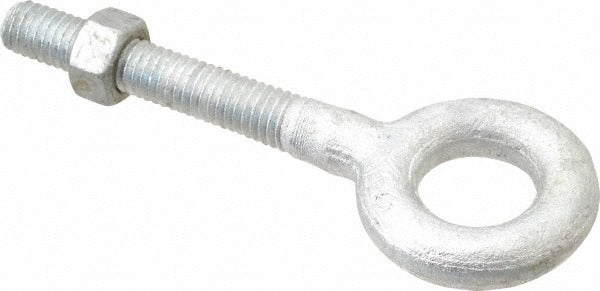

Gibraltar P12330GB Lifting Eye Bolt 1200 Lb 3/8-16

Product Description

The GIBRALTAR P12330GB is a fixed, non-shoulder lifting eye bolt designed for rigging and overhead lifting applications in industrial and construction environments. Built from Grade 1030 steel with a zinc-plated finish for corrosion resistance, it carries a rated lifting capacity of 1,200 pounds. The 3/8-16 threaded shank is partially threaded, with a 1.5-inch thread length and a 2.5-inch shank length. The eye measures 0.75 inches inside diameter and 1.5 inches outside diameter, providing a standard interface for hooks, shackles, and rigging hardware. This type of hardware is installed by millwrights, riggers, ironworkers, and maintenance mechanics.

The P12330GB suits fixed vertical-lift applications where a shouldered eye bolt is not required. It is commonly used in machinery anchoring, equipment lifting, and structural rigging setups in both light industrial and heavy maintenance environments. The absence of a shoulder means this bolt is rated for in-line, axial loading only and must not be used for angular or side-load rigging configurations without appropriate derating. The zinc-plated finish offers baseline protection in general indoor or sheltered outdoor service conditions.

Key Features

• 1,200 lb rated lifting capacity for vertical in-line loads
• Grade 1030 steel construction for reliable tensile strength
• Zinc-plated finish provides corrosion resistance
• 3/8-16 thread size with 1.5-inch partial thread engagement
• 0.75-inch inside eye diameter compatible with standard hooks and shackles
• Without-shoulder design for straightforward through-bolt installations

Compatibility

Designed as an OEM-style fixed eye bolt for use with standard 3/8-16 tapped holes or hardware in rigging, lifting, and tie-down assemblies where a non-shouldered, partially threaded eye bolt is specified.

Installation Notes

Installation should be performed by qualified riggers or mechanics familiar with applicable ASME B30 rigging standards. The bolt must be threaded fully to the specified engagement depth and secured with a nut where the application requires it. Because this is a fixed eye bolt without a shoulder, loading must be applied axially; angular loads reduce rated capacity significantly and require derating per applicable rigging standards. Always inspect the eye bolt and mating hardware for damage or deformation before each lift.
