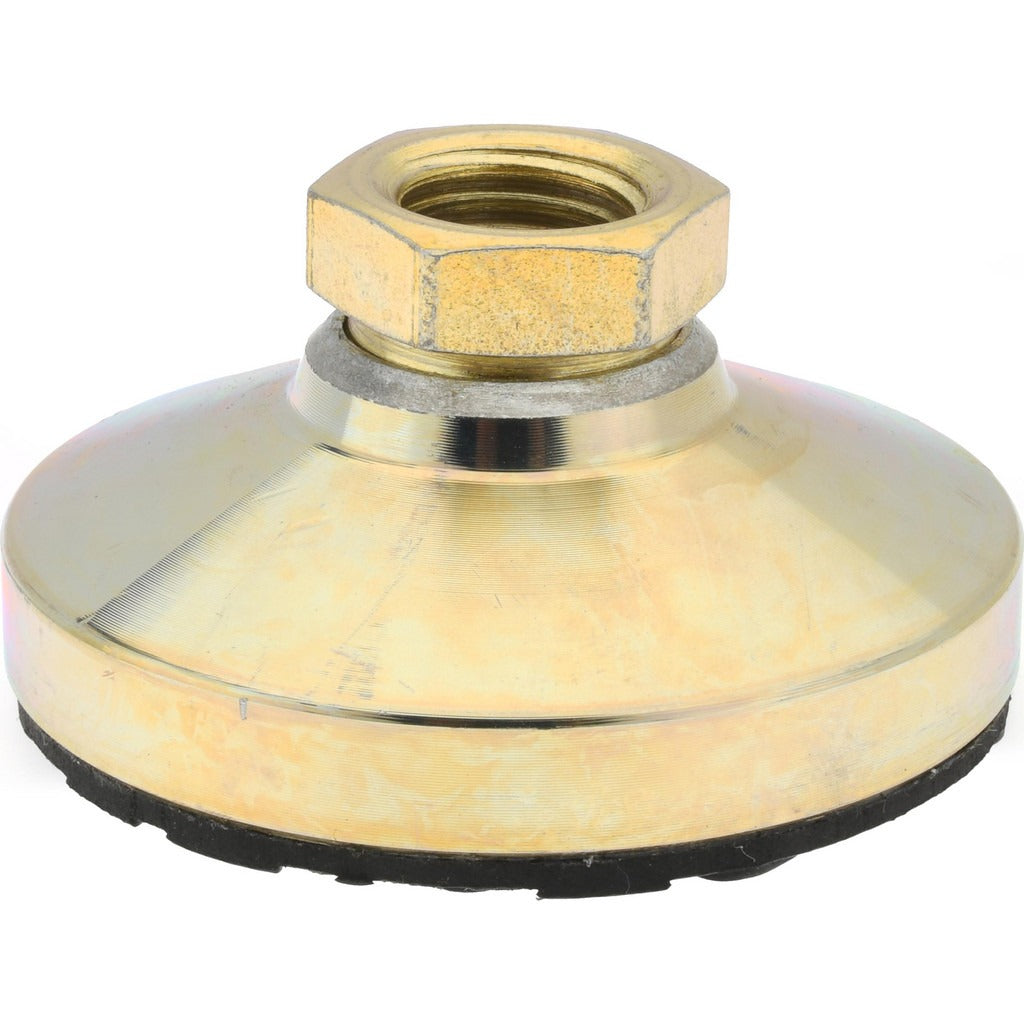

Gibraltar NTS-4Z-G Tapped Pivotal Leveling Mount 5550 Lb

Product Description

The GIBRALTAR NTS-4Z-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. It features a 3/4-10 threaded stud and supports a load capacity of 5,550 pounds, making it suited for heavy-duty machinery stabilization and leveling tasks. The mount uses a steel pad for durability at the contact surface and a zinc stud for corrosion resistance. With a base diameter of 3 inches and an overall length of 1-1/2 inches, this compact mount is installed by millwrights, maintenance technicians, and mechanical contractors who require precise leveling under stationary equipment loads.

This leveling mount is appropriate for use in manufacturing facilities, mechanical rooms, and industrial plant floors where equipment must be leveled and stabilized on hard surfaces. The pivotal pad design allows for slight angular adjustment to accommodate uneven floor conditions. It is commonly installed under compressors, pumps, generators, and other heavy stationary equipment requiring a firm, adjustable foundation point. The 3/4-10 thread size is a standard coarse-thread specification compatible with a wide range of equipment mounting feet and frames.

Key Features

• 5,550 lb load capacity for heavy-duty equipment support
• 3/4-10 coarse thread stud for broad compatibility with standard mounting frames
• Pivotal pad design accommodates minor floor angle variations
• Steel pad provides a durable, wear-resistant contact surface
• Zinc stud offers corrosion resistance in typical indoor industrial environments
• Compact 3-inch base diameter and 1-1/2-inch overall length for space-constrained installations

Compatibility

Designed as a standard tapped pivotal leveling mount for heavy equipment with 3/4-10 threaded mounting provisions. Suitable for use wherever a 3/4-10 leveling foot is specified on compressors, pumps, generators, and similar stationary mechanical equipment.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians using a 1-1/16 hex wrench or socket. Equipment must be de-energized and safely supported before leveling mounts are adjusted or replaced. Ensure the floor surface is clean and capable of supporting the rated load before torquing the mount into its final position. Follow facility safety procedures and applicable mechanical codes when working under suspended or loaded equipment.
