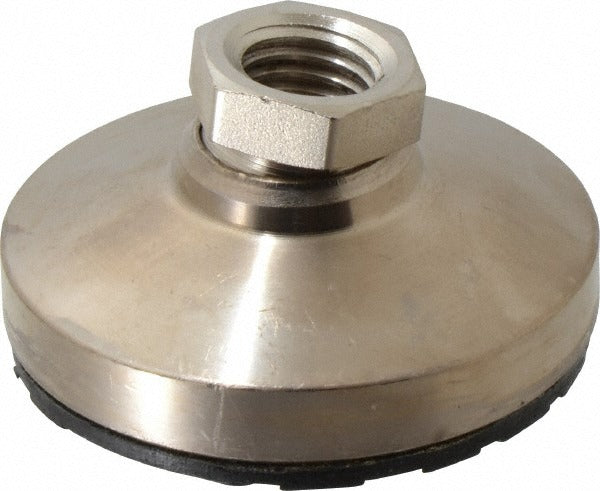

Gibraltar NTS-4N-G Tapped Pivotal Leveling Mount 5550 Lb

Product Description

The GIBRALTAR NTS-4N-G is a tapped pivotal leveling mount designed for heavy-duty industrial and commercial equipment positioning. It features a 3/4-10 threaded stud and accepts vertical loads up to 5,550 pounds, making it suited for leveling machinery, fabricated frames, and industrial bases on uneven surfaces. The pivotal design allows the pad to self-adjust to floor irregularities, distributing load evenly across the 3-inch diameter steel pad. Both the stud and pad are constructed of steel for durability under sustained static loads. At 1.5 inches in overall length and 1.3 pounds, the NTS-4N-G is compact enough to retrofit existing equipment feet without major modification.

This leveling mount is used in industrial maintenance, equipment installation, and structural fabrication applications. It is appropriate for setting machine tools, compressors, pumps, racks, and other heavy equipment that requires precise leveling and vibration isolation on concrete or hard floor surfaces. Installation is typically performed by millwrights, maintenance technicians, or mechanical contractors during initial equipment placement or relevel service.

Key Features

• 5,550 lb static load capacity for heavy equipment support
• Tapped pivotal design allows pad to self-adjust to uneven floor surfaces
• 3/4-10 threaded stud for compatibility with standard tapped equipment bases
• 3-inch diameter steel pad provides broad contact area for load distribution
• 1-1/16 inch hex size for standard wrench engagement during height adjustment
• All-steel construction on both stud and pad for durability in industrial environments

Compatibility

Designed as an OEM-style replacement or direct-fit leveling mount for equipment bases with a standard 3/4-10 tapped hole pattern.

Installation Notes

Installation is performed by threading the NTS-4N-G stud into the tapped hole on the equipment base and adjusting height using a 1-1/16 inch wrench on the hex. De-energize and safely support all equipment before performing leveling adjustments. Confirm floor surface condition and load distribution across all mount points before returning equipment to service. Follow applicable facility safety and equipment manufacturer guidelines during installation.
