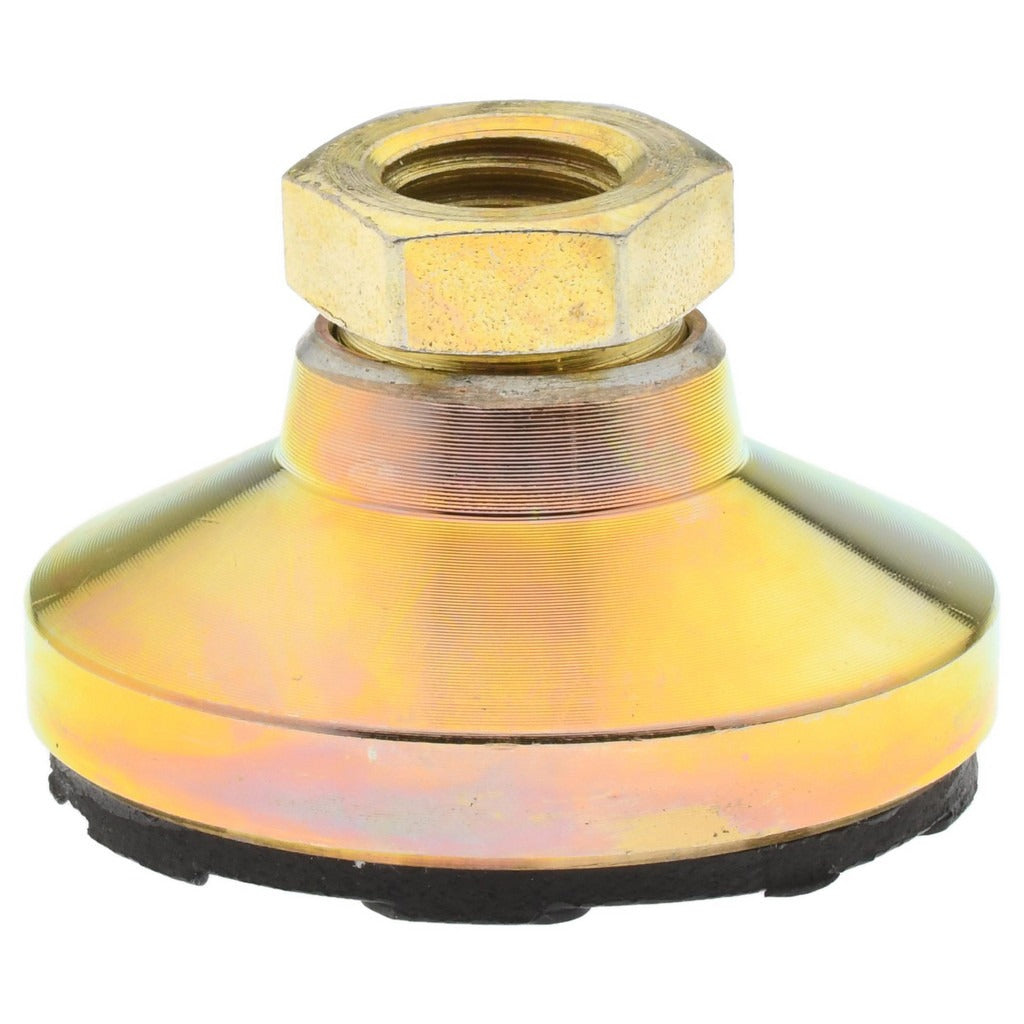

Gibraltar NTS-2Z-G Tapped Pivotal Leveling Mount 3750 Lb

Product Description

The GIBRALTAR NTS-2Z-G is a tapped pivotal leveling mount designed to provide stable, adjustable support for industrial machinery, equipment bases, and fabricated frames. The mount features a zinc stud with a 1/2-13 thread size and a steel pad base, allowing it to pivot and self-adjust under load to compensate for minor surface irregularities. With a rated load capacity of 3,750 pounds, it is built for demanding production and mechanical service environments. The 1-7/8 inch base diameter and 1-1/8 inch overall length make it a compact solution where space is limited. Machinists, millwrights, and industrial maintenance technicians are the typical installers.

This leveling mount is suited for use in manufacturing facilities, mechanical rooms, and equipment installation settings where machinery must be precisely leveled on concrete floors or steel platforms. The pivotal pad design accommodates slight angular misalignment between the equipment foot and the mounting surface, reducing stress concentrations. It is appropriate for use under machine tools, compressors, pumps, and similar industrial equipment that requires periodic leveling adjustment after installation.

Key Features

• 3,750 lb rated load capacity for heavy-duty equipment support
• Pivotal steel pad self-adjusts to compensate for surface irregularities
• 1/2-13 tapped thread for standard fastener compatibility
• Zinc stud construction provides corrosion resistance in typical indoor environments
• 1-7/8 inch base diameter with compact 1-1/8 inch overall length
• 3/4 inch hex size for wrench adjustment during leveling

Compatibility

Designed as a standard tapped pivotal leveling mount for industrial machinery and equipment bases requiring 1/2-13 thread fastener interfaces and load ratings up to 3,750 pounds.

Installation Notes

Installation is typically performed by a millwright or industrial maintenance technician. Before adjusting or replacing leveling mounts, de-energize and lock out all power sources to the equipment per applicable LOTO procedures. Use a 3/4 inch wrench or socket to adjust mount height. Verify all mounts share load evenly after leveling and re-check level after initial equipment run-in, as settling can occur.
