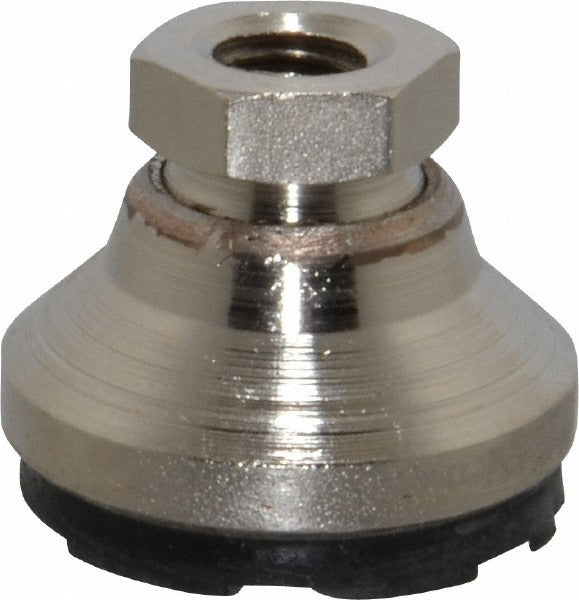

Gibraltar NTS-1N-G Tapped Pivotal Leveling Mount 3/8-16

Product Description

The GIBRALTAR NTS-1N-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. It accepts a 3/8-16 threaded stud and provides a static load capacity of 2,800 pounds. The steel stud and steel pad construction give it the durability needed in demanding service environments. The pivoting pad allows for angular compensation on uneven surfaces, keeping equipment level without shimming. With a base diameter of 1.25 inches and an overall length of 0.875 inches, this is a compact mount suited for machinery, enclosures, and fabricated equipment frames. Installation is typically performed by millwrights, maintenance technicians, or mechanical contractors.

This leveling mount fits applications where threaded adjustment and floor-level load transfer are required. Common uses include leveling industrial machinery, control panels, enclosures, skid-mounted equipment, and fabricated steel frames in commercial and industrial settings. The pivotal pad accommodates slight surface irregularities, reducing stress concentration at the contact point. The 3/8-16 thread is a standard coarse-thread size that mates with a wide range of threaded inserts and weld nuts commonly used in fabricated assemblies.

Key Features

• 2,800 lb static load capacity for heavy-duty equipment support
• 3/8-16 coarse-thread stud for compatibility with standard threaded inserts and weld nuts
• Pivotal steel pad compensates for minor surface irregularities without shimming
• Steel stud and steel pad construction for durability in industrial environments
• Compact form factor: 1.25 inch base diameter, 0.875 inch overall length
• 5/8 inch hex size for standard wrench adjustment

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for industrial machinery, fabricated equipment frames, and enclosures requiring 3/8-16 threaded leveling hardware.

Installation Notes

Installation is performed by threading the stud into a matching 3/8-16 threaded insert, weld nut, or tapped boss in the equipment base. Use a 5/8 inch wrench to adjust mount height and level the equipment. De-energize and fully support the equipment before adjusting leveling mounts under load. Verify that the floor surface can handle the rated load before setting the final position.
