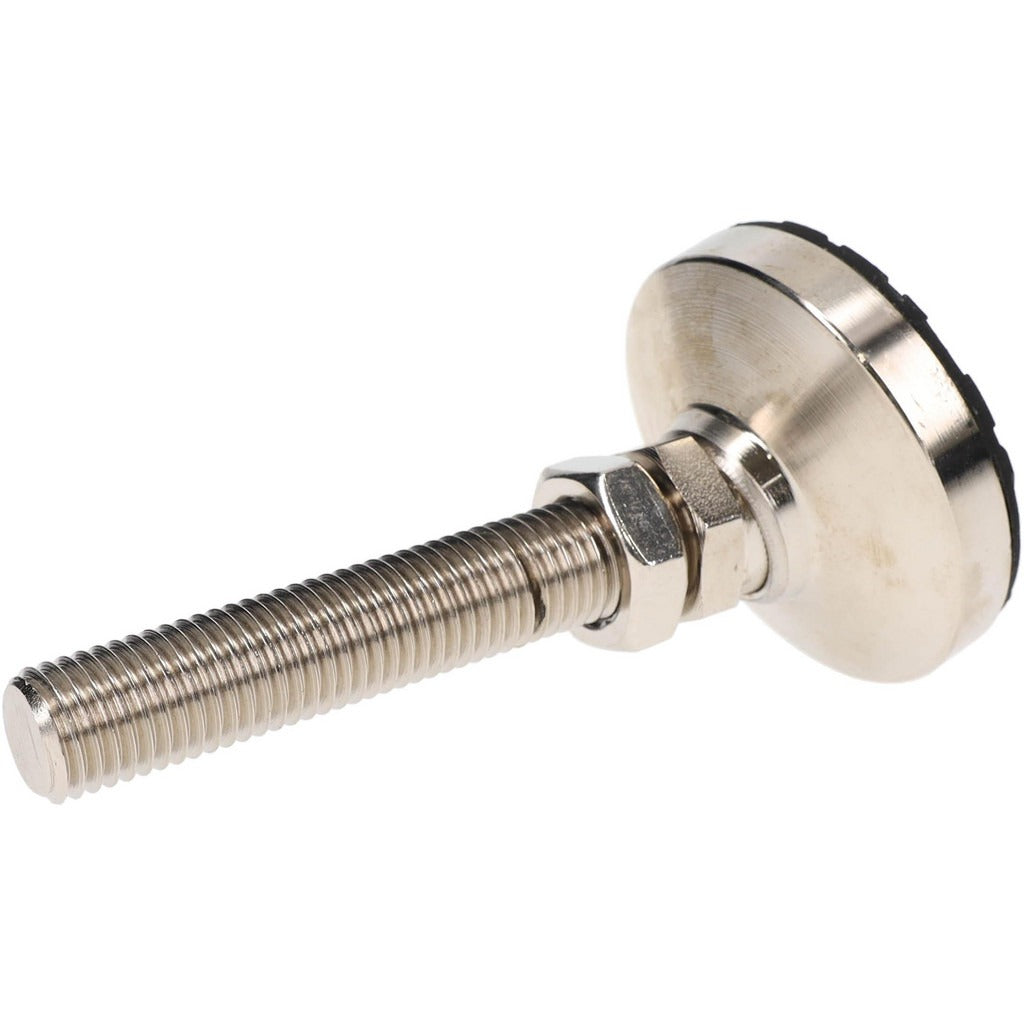

Gibraltar NSW-4AN-G Studded Pivotal Leveling Mount 7400 Lb

Product Description

The GIBRALTAR NSW-4AN-G is a studded pivotal leveling mount designed for industrial and commercial equipment support applications. It features a 3-inch diameter steel base pad and a 3/4-10 threaded steel stud, with a rated load capacity of 7,400 pounds. The pivotal design allows the mount to self-adjust to uneven surfaces, maintaining stable equipment footing without binding. At 5.5 inches in length, this mount provides meaningful height adjustment range for leveling heavy machinery, fabricated frames, or structural equipment. It is a standard item for millwrights, maintenance mechanics, and equipment installers working in industrial facilities.

This leveling mount is suited for heavy-duty stationary equipment where rigid floor contact and precise leveling are required. Typical applications include machine tools, compressors, pumps, industrial enclosures, and fabricated steel frames installed on concrete or other hard surfaces. The steel construction handles high compressive loads in dry indoor environments. It installs as a foot mount on equipment bases using the threaded stud interface.

Key Features

• 7,400 lb rated load capacity for heavy industrial equipment support
• Pivotal base design accommodates surface irregularities without rocking
• 3-inch diameter steel pad distributes load over a stable footprint
• 3/4-10 threaded steel stud for secure attachment to equipment base
• 5.5-inch overall length provides leveling adjustment range
• All-steel construction for durability in industrial service

Compatibility

Designed as an OEM-style or aftermarket leveling foot for heavy industrial and commercial equipment bases requiring a 3/4-10 threaded mount interface and load ratings up to 7,400 pounds.

Installation Notes

Leveling mounts of this type are installed by millwrights or maintenance mechanics during equipment setting and alignment. Thread the stud into the equipment base to the appropriate engagement depth before placing the unit under load. Ensure the mating threaded hole in the equipment base is clean and free of debris before installation. Do not exceed the rated load capacity, and verify surface condition can support the concentrated load at each foot location.
