Gibraltar NSW-1Z-G Studded Pivotal Leveling Mount 300 Lb

Product Description

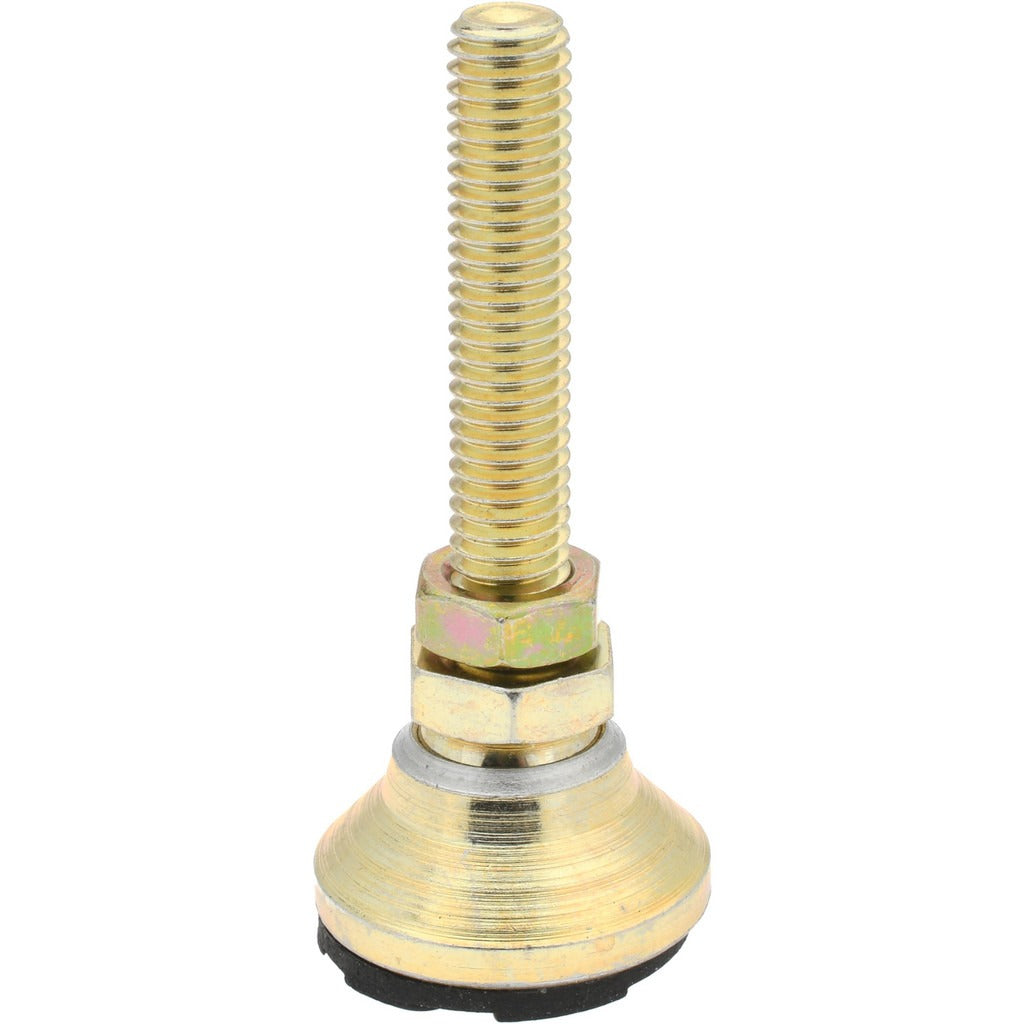

The GIBRALTAR NSW-1Z-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and fabricated assemblies. The pivoting pad allows the base to self-align on uneven or slightly angled surfaces, maintaining full contact and distributing load evenly. Built with a steel pad and steel stud, this mount handles a rated load capacity of 300 pounds. The 3/8-16 bolt thread size makes it compatible with standard threaded hardware. At 0.21 pounds, it is a compact component suited for applications where precise leveling and vibration isolation are required. Machinists, millwrights, and industrial maintenance technicians are the typical installers.

This leveling mount is used in light to medium-duty industrial and commercial settings where equipment must be leveled on shop floors, work platforms, or structural frames. It is appropriate for mounting under machine bases, enclosures, conveyor supports, and similar equipment requiring a fixed threaded foot with pivoting contact. The 1-1/4 inch base diameter and 2-7/8 inch overall length make it suited for confined mounting footprints where space around the fastener is limited.

Key Features

• Pivoting steel pad self-aligns on uneven mounting surfaces
• 300 lb rated load capacity per mount
• 3/8-16 bolt thread for compatibility with standard hardware
• Steel stud and steel pad construction for durability in shop environments
• Compact 1-1/4 inch base diameter fits tight mounting footprints
• 2-7/8 inch length provides moderate height adjustment range

Compatibility

Designed as a standard 3/8-16 threaded leveling foot suitable for use with machine bases, equipment frames, and fabricated weldments requiring a pivotal leveling mount in that thread and load class.

Installation Notes

Installation is typically performed by a machinist or maintenance technician using standard hand tools. Thread the stud into the pre-tapped or through-hole mounting location and adjust height before tightening the locking nut if one is present in the assembly. Ensure the mating threaded hole or fastener meets the 3/8-16 thread specification before installation. Do not exceed the rated 300 lb load capacity per mount.
