Gibraltar NSW-0A-G Studded Pivotal Leveling Pad 1000 Lb

Product Description

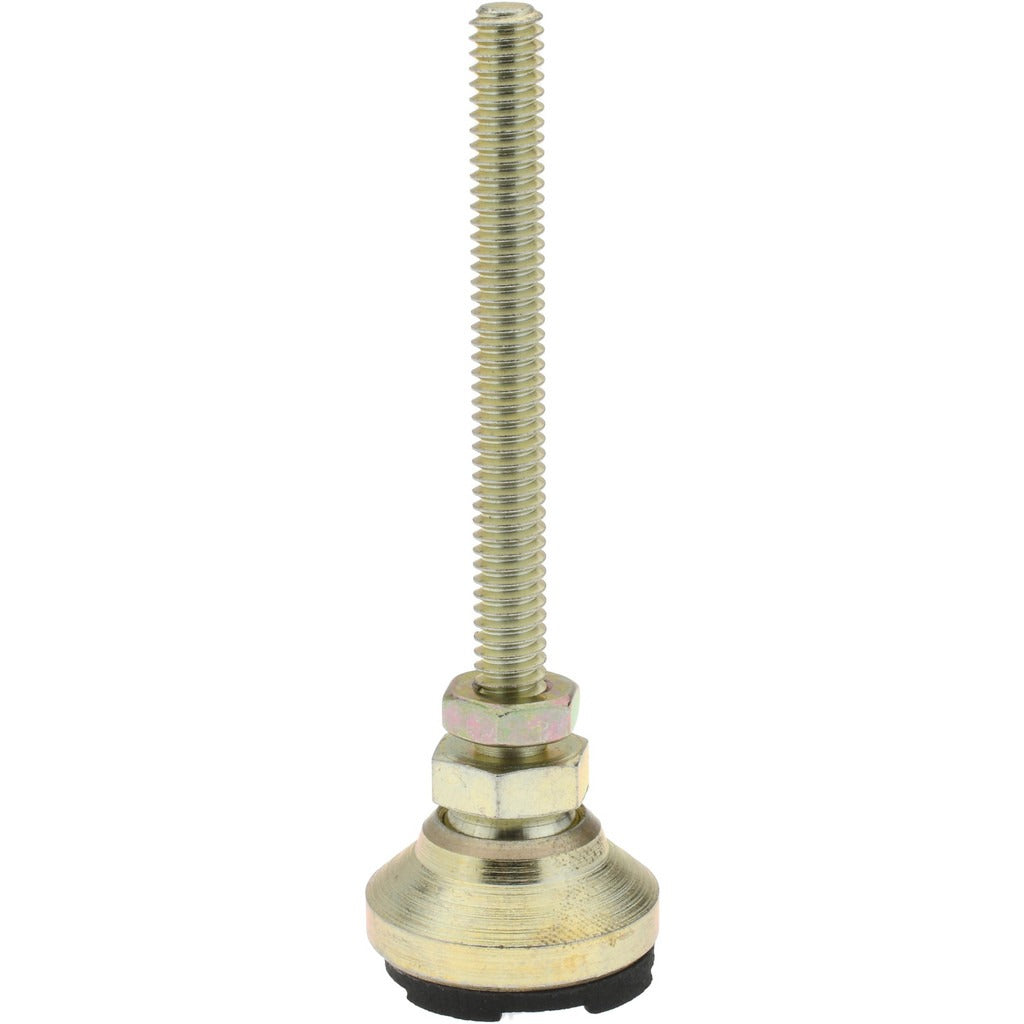

The GIBRALTAR NSW-0A-G is a studded pivotal stud mount leveling pad designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. Featuring a 1/4-20 bolt thread and a pivotal base design, this mount allows for angular adjustment to compensate for uneven floors or misaligned mounting surfaces. With a load capacity of 1,000 pounds and a compact 1-inch base diameter, it is well suited for light-to-medium duty industrial and commercial applications. HVAC technicians, millwrights, and equipment installers use this type of leveling mount to achieve precise leveling without shimming or welding.

This leveling pad is commonly used in industrial and commercial settings where equipment must be securely positioned on concrete, steel, or other hard surfaces. Typical applications include air handling units, compressor bases, pump skids, light machinery, and fabricated equipment frames. The pivotal design accommodates minor surface irregularities, making it practical for field installations where perfectly flat mounting surfaces are not always available. At 3-3/16 inches in length, it provides adequate thread engagement and height adjustment range for most standard mounting configurations.

Key Features

• 1/4-20 bolt thread for compatibility with standard threaded mounting holes
• Pivotal base design accommodates angled or uneven mounting surfaces
• 1,000-pound load capacity for light-to-medium duty equipment support
• 1-inch base diameter provides a compact footprint
• 3-3/16-inch overall length offers adequate height adjustment range
• Stud mount configuration simplifies installation into pre-threaded frames or base plates

Compatibility

Designed as an OEM-style replacement or add-on leveling mount for equipment frames, machinery bases, and structural assemblies that use standard 1/4-20 threaded stud mount leveling feet.

Installation Notes

Installation is typically performed by millwrights, HVAC technicians, or equipment service technicians using standard hand tools. Ensure the mounting surface thread is clean and free of debris before threading the stud into place. Adjust the pivotal pad to achieve full contact with the floor surface before locking down the assembly per equipment manufacturer guidelines. Power down all associated equipment before performing any leveling or repositioning work.
