Gibraltar MT7698-G Straight Ejector Pin 6mm Steel

Product Description

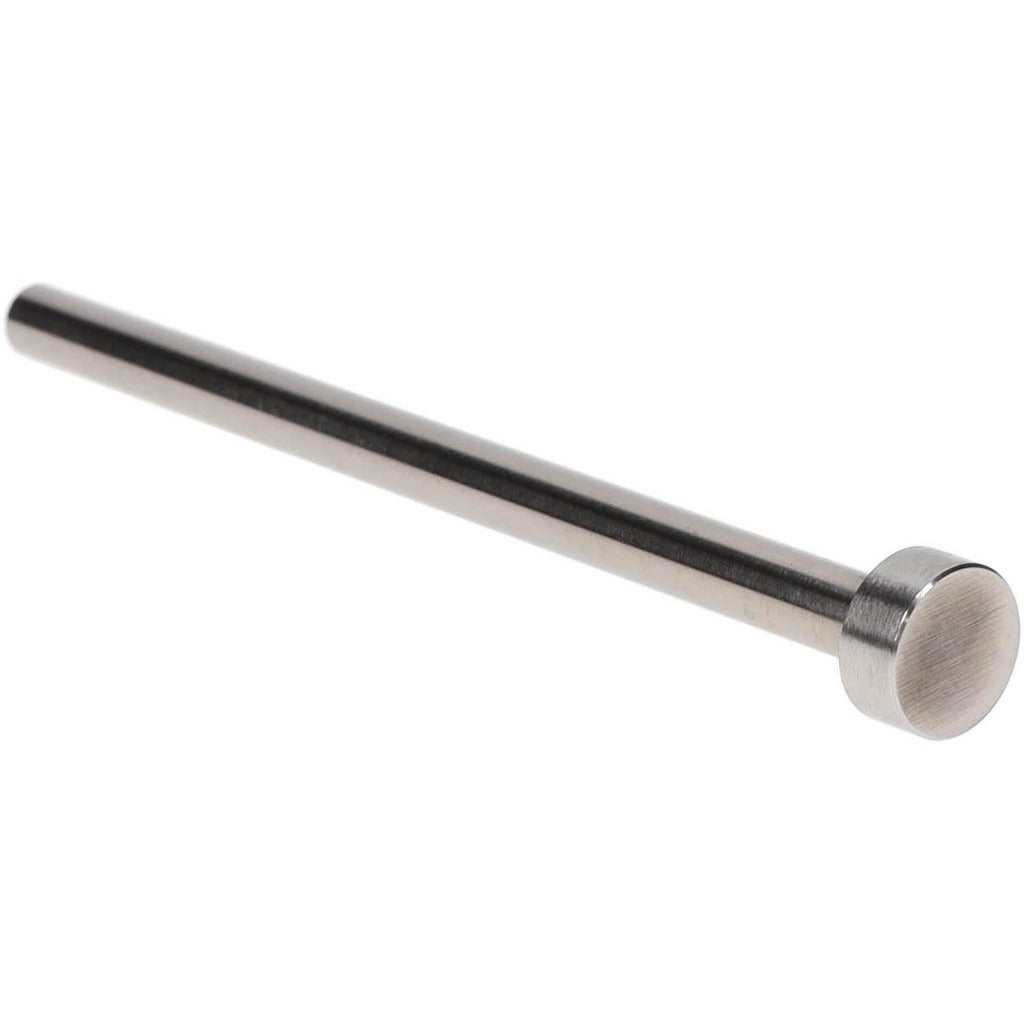

The GIBRALTAR MT7698-G is a straight ejector pin designed for use in injection molds, die casting tooling, and similar mold-base assemblies. Machined from steel with a nitride finish, this pin measures 6 mm in pin diameter with an overall length of 100 mm. The 12 mm head diameter and 5 mm head height provide positive seating in standard ejector plates. The nitride surface treatment improves hardness and wear resistance, extending service life under repetitive ejection cycles. Toolmakers, moldmakers, and mold maintenance technicians install this type of component during mold builds and scheduled maintenance.

This ejector pin is suited for mold-base applications requiring a standard straight-pin configuration. It is appropriate for use in production injection molds, prototype tooling, and maintenance replacement situations where a 6 mm diameter straight ejector pin with a 100 mm overall length is specified. The head geometry is consistent with common ejector plate configurations used in standard mold-base systems.

Key Features

• Steel construction with nitride finish for improved surface hardness and wear resistance
• 6 mm pin diameter with 95 mm pin length for precise ejection stroke clearance
• 12 mm head diameter and 5 mm head height for positive retention in ejector plates
• 100 mm overall length accommodates standard mold-base ejector plate stack heights
• Straight ejector pin configuration for direct, perpendicular part ejection

Compatibility

Designed as a standard straight ejector pin replacement or new-build component for mold-base assemblies requiring a 6 mm pin diameter and 100 mm overall length with a 12 mm head diameter.

Installation Notes

Installation is performed by qualified moldmakers or mold maintenance technicians. Ensure the mold is fully de-energized, cooled, and safely secured in a press or on a workbench before disassembling the ejector plate assembly. Verify pin fit and clearance in the mold plate before final assembly. Do not force the pin into an undersized bore, as this can damage the pin or the mold plate.
