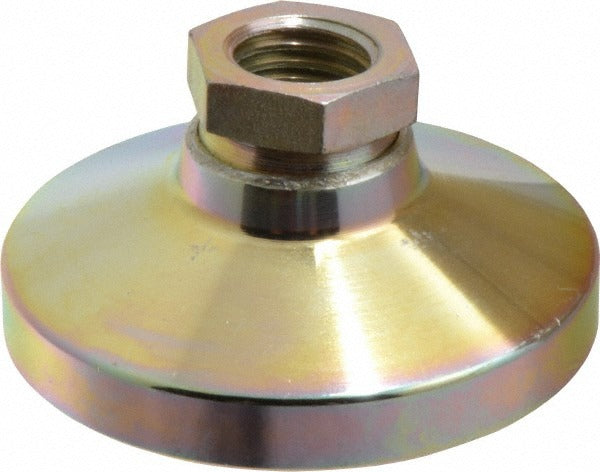

Gibraltar MT-SW3-G Tapped Pivotal Leveling Mount M16

Product Description

The GIBRALTAR MT-SW3-G is a tapped pivotal leveling mount designed for industrial machine and equipment positioning applications. It features an M16 threaded stud and a pivoting pad that allows angular adjustment to compensate for uneven mounting surfaces. The steel stud and steel pad construction provide robust load-bearing performance rated at 2,721 kilonewtons. The base diameter measures approximately 2.5 inches and the overall length measures approximately 1.25 inches. This type of mount is installed by millwrights, maintenance technicians, and mechanical contractors during equipment leveling and alignment work.

Tapped pivotal leveling mounts are used in industrial and commercial settings where precise machine leveling is required. The pivoting pad design accommodates minor floor irregularities without transmitting angular stress to the equipment frame. Common applications include leveling production machinery, conveyor supports, workbenches, and fabrication equipment on concrete or steel floors. The M16 thread size fits a wide range of metric-threaded equipment bases and mounting pads.

Key Features

• Pivoting pad design compensates for uneven or slightly angled mounting surfaces
• M16 threaded stud for compatibility with metric equipment bases
• Steel stud and steel pad construction for heavy-duty load support
• Compact form factor with approximately 2.5-inch base diameter and 1.25-inch overall length
• 22 mm hex size for standard wrench installation and adjustment

Compatibility

Designed as an OEM-style replacement or standard installation component for industrial equipment requiring M16 tapped pivotal leveling mounts with a steel pad and steel stud configuration.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Before adjusting or replacing leveling mounts, de-energize and safely support the equipment to prevent movement. Use a 22 mm wrench on the hex stud for controlled height adjustment. Follow applicable equipment manufacturer guidelines and facility safety protocols when leveling heavy machinery.
