Gibraltar MSW10-8BHYZ-PTG Threaded Ball Plunger M12 X 1.75

Product Description

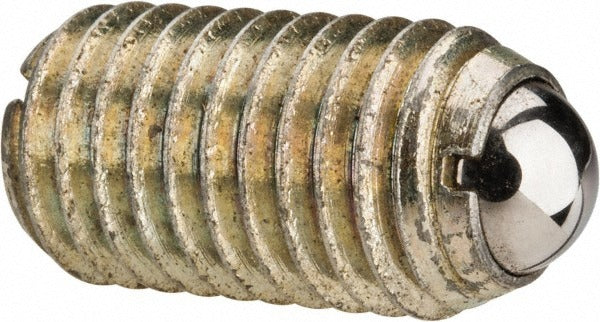

The GIBRALTAR MSW10-8BHYZ-PTG is a threaded ball plunger designed for indexing, positioning, and light-duty detent applications in mechanical assemblies. It features an M12 x 1.75 threaded body measuring 0.866 inches in length, with a steel ball 0.315 inches in diameter and a maximum ball reach of 0.098 inches. The steel body includes a locking element to secure the plunger in position once set. Initial end force is 16.86 lb and final end force is 25.85 lb, making it suitable for applications that require consistent, repeatable positioning force. Color-coded purple for easy identification during assembly or maintenance.

This ball plunger is used in industrial and mechanical applications where a spring-loaded detent or positioning function is needed. Typical installations include machine tool fixtures, jigs, sliding panels, and drawer or tray positioning mechanisms. The M12 x 1.75 thread size fits standard metric-threaded bores in steel or aluminum housings. It is installed by machinists, tool-and-die technicians, and mechanical maintenance professionals working with metric-threaded assemblies requiring controlled retention force.

Key Features

• M12 x 1.75 thread size for compatibility with standard metric-threaded bores
• Steel body and steel ball construction for durability in mechanical environments
• Integrated locking element secures plunger position after adjustment
• 16.86 lb initial end force and 25.85 lb final end force for consistent detent performance
• Maximum ball reach of 0.098 inches suits tight-tolerance positioning applications
• Purple color code aids identification in multi-plunger assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit component for mechanical assemblies requiring an M12 x 1.75 threaded ball plunger with a steel body and locking element.

Installation Notes

Installation is performed by machinists or mechanical technicians using standard metric threading tools. Ensure the receiving bore is clean and threaded to M12 x 1.75 specification before installation. Use the locking element to fix the plunger at the desired extension depth once positioned. De-energize or lock out any powered equipment before servicing assemblies that contain this plunger.
