Gibraltar MSW10-6BHYZ-PTG Threaded Ball Plunger M10 X 1.5

Product Description

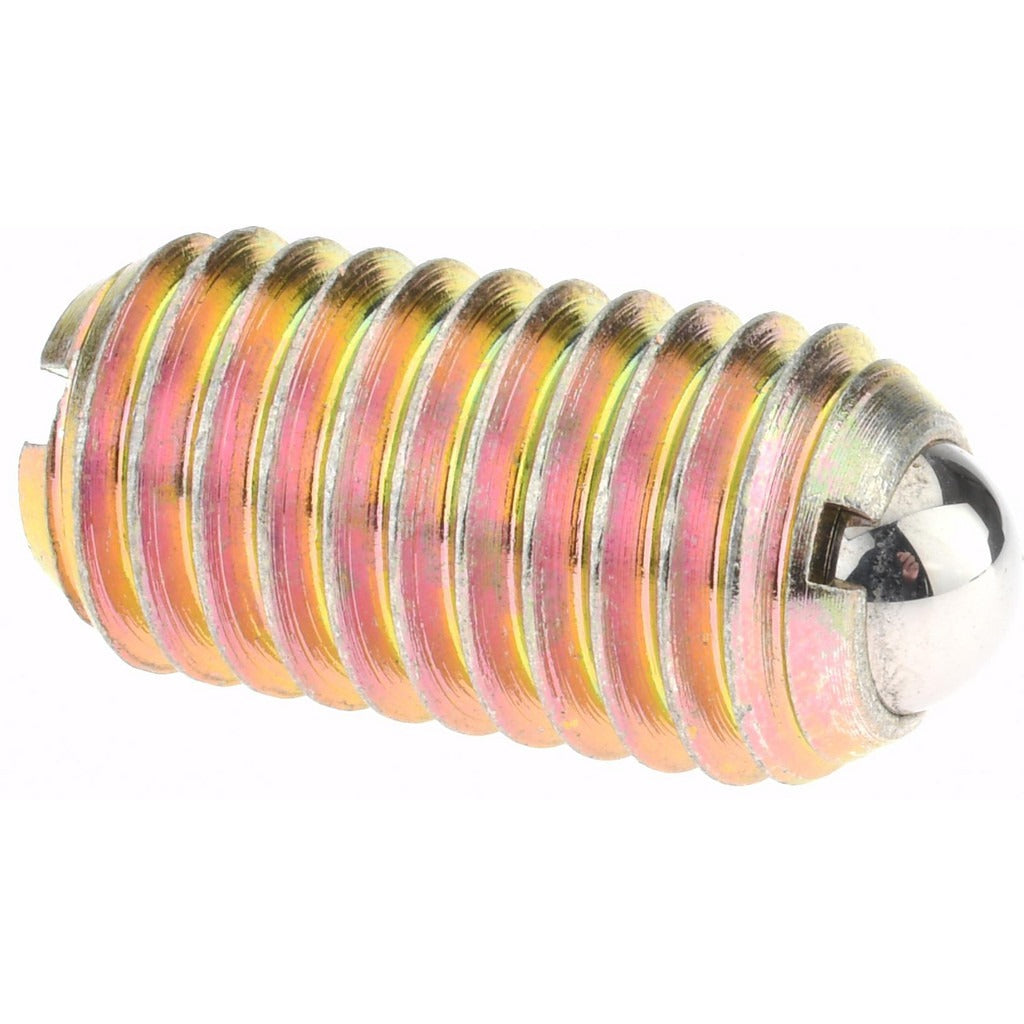

The GIBRALTAR MSW10-6BHYZ-PTG is a threaded ball plunger designed for precise, spring-loaded positioning and indexing applications in mechanical assemblies. The plunger features an M10 x 1.5 thread for secure installation into tapped holes, a 0.236-inch steel ball, and a body length of 0.748 inches. A built-in locking element prevents the plunger from backing out under vibration or repeated cycling. Initial end force is 13.49 pounds and final end force is 20.23 pounds, providing a defined resistance range suitable for light-duty detent and positioning tasks. Machinists, toolmakers, and mechanical assembly technicians are the primary installers of this component.

This ball plunger is suited for use in jigs, fixtures, tooling plates, machine tool components, and general industrial assemblies where repeatable spring-loaded ball detents are required. The M10 x 1.5 thread is a common metric fastener size, making this plunger compatible with a wide range of metric-tapped workholding and fixturing hardware. The purple color code aids in quick visual identification of the force specification during assembly or maintenance. It is sold individually and is appropriate for both production and maintenance applications.

Key Features

• M10 x 1.5 thread for installation into standard metric tapped holes
• Steel body and steel ball for durability in industrial environments
• Locking element prevents back-out under vibration or cyclic loading
• Initial end force of 13.49 pounds and final end force of 20.23 pounds
• Maximum ball reach of 0.079 inches provides controlled engagement depth
• Purple color code for fast visual force-range identification

Compatibility

Designed for installation in any fixture, jig, tooling plate, or mechanical assembly with an M10 x 1.5 tapped hole requiring a spring-loaded ball detent.

Installation Notes

Installation is performed by threading the plunger into a pre-tapped M10 x 1.5 hole using an appropriate hex key or spanner; the locking element secures the body in place once torqued to the assembly specification. De-energize or fully lock out any machinery before installing or replacing plungers in active fixtures or machine tool components. Avoid over-tightening, which can distort the body or restrict ball travel. Verify ball protrusion and end force meet the application requirements before returning the assembly to service.
