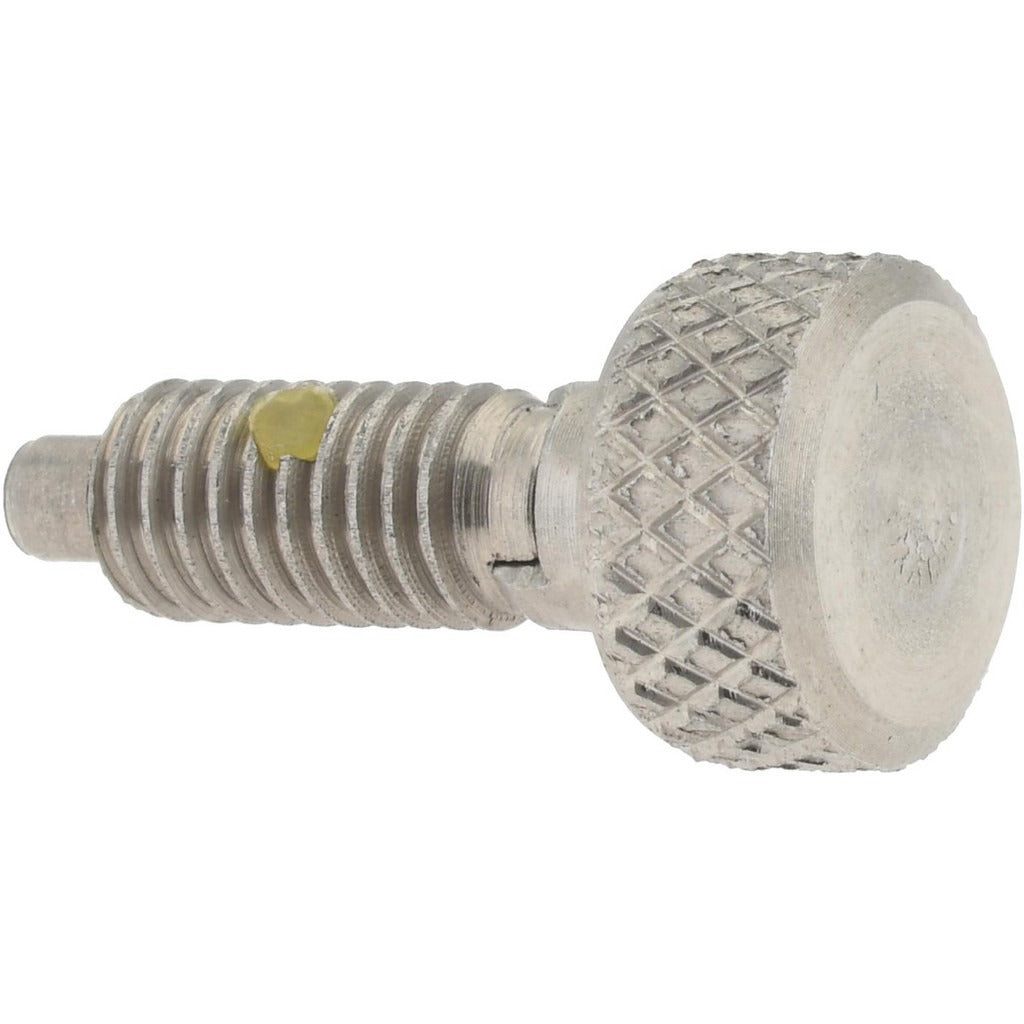

Gibraltar MSKNL-0-PT-G Knob Handle Plunger M5x0.8

Product Description

The GIBRALTAR MSKNL-0-PT-G is a non-locking knob handle plunger designed for precision indexing and positioning applications in industrial and mechanical assemblies. Built from stainless steel, it features an M5x0.8 threaded body with a knurled knob head for tool-free adjustment. The plunger delivers an initial end force of 0.5 pounds and a final end force of 3 pounds, making it suitable for light-duty detent and locating work. With a body length of 0.47 inches and a plunger projection of 0.078 inches, this compact unit installs into threaded fixtures and jigs where repeatable positioning is required. Machinists, toolmakers, and maintenance technicians typically install these components.

This plunger is used in machine tool fixtures, workholding setups, industrial equipment panels, and any threaded assembly requiring a spring-loaded locating or detent function. The M5x0.8 thread size and compact form factor make it a common fit for light mechanical enclosures, instrument panels, and precision jigs in both production and maintenance environments. It is sold individually and is suitable for OEM builds as well as field replacement in existing assemblies.

Key Features

• M5x0.8 threaded body with 0.394 inch thread length for secure mounting in tapped holes
• Non-locking plunger type with 0.078 inch projection for light detent and indexing duty
• Initial end force of 0.5 pounds ramping to a final end force of 3 pounds
• Knurled knob head at 0.355 inch diameter allows tool-free hand adjustment
• Stainless steel construction for corrosion resistance in demanding environments
• Maximum plunger diameter of 0.0984 inches with a tolerance of +0.000 / -0.001 inches

Compatibility

Designed as a standard M5x0.8 spring plunger for use in threaded fixtures, jigs, and mechanical assemblies requiring a non-locking knob-style plunger in this force and size range.

Installation Notes

Installation is performed by threading the M5x0.8 body into a pre-tapped hole using hand tightening on the knurled knob or a suitable wrench on the body. Ensure the mating thread in the fixture is clean and free of debris before installation. Verify plunger projection clearance in the fully compressed and extended positions before final assembly. De-energize and lock out any powered equipment before servicing assemblies containing this component.
