Gibraltar MS-WD4-G Studded Pivotal Leveling Mount 816 Lb

Product Description

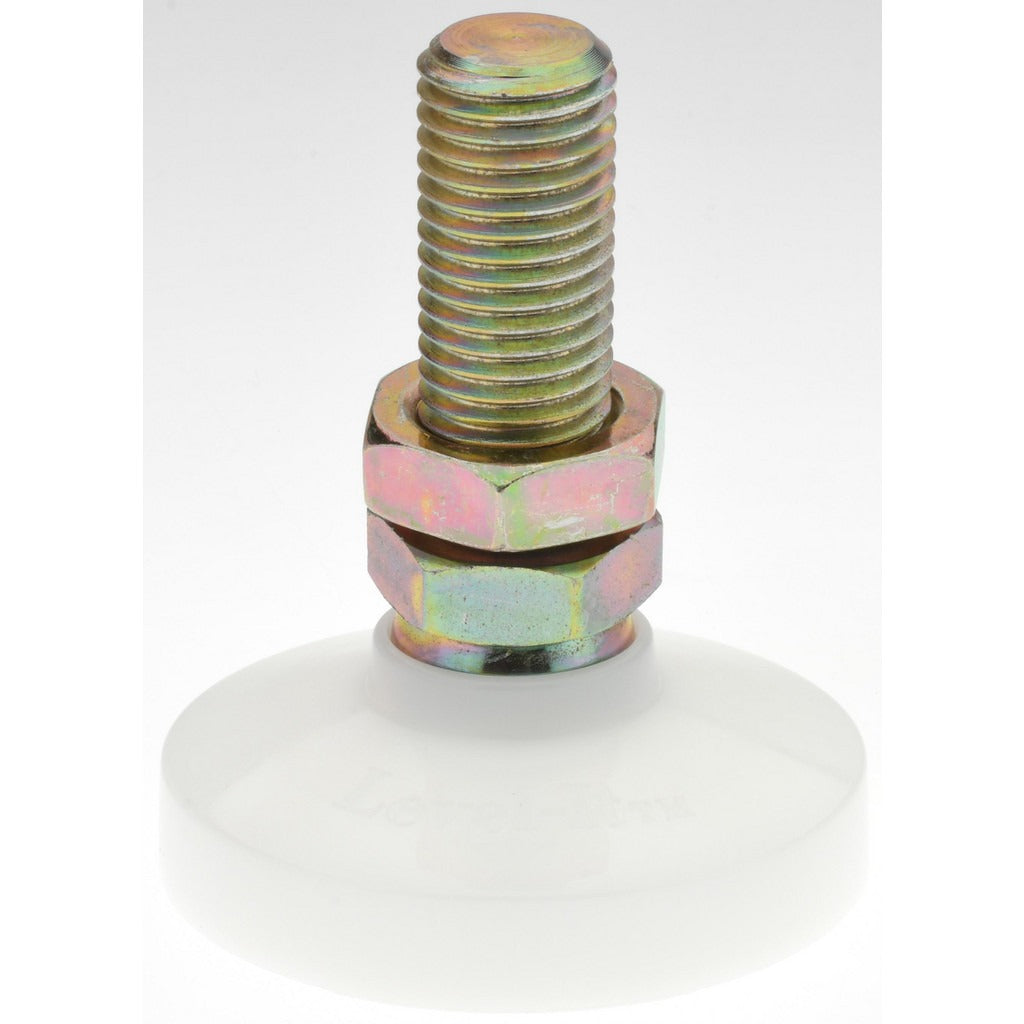

The GIBRALTAR MS-WD4-G is a studded pivotal leveling mount designed to provide adjustable, stable support for industrial machinery, equipment frames, and fabricated assemblies. The mount combines a steel stud with a Delrin pad to deliver firm footing while allowing pivot adjustment to compensate for uneven floors or surfaces. With a load capacity of 816 pounds, it handles the demands of typical light-to-medium industrial applications. At 89.0 inches in overall length with a 51.00 mm thread length and an M20 bolt thread, this mount suits installations where precise leveling and secure anchoring are required. Licensed millwrights, maintenance technicians, and fabricators are the primary installers.

This leveling mount is well suited for use in industrial facilities, manufacturing plants, and mechanical equipment rooms where machines, frames, or enclosures must be leveled on concrete or steel floors. The pivotal base design accommodates slight angular misalignment between the stud axis and the mounting surface, making it practical for installations on floors that are not perfectly flat. The Delrin pad material protects finished or coated surfaces from scoring and reduces vibration transmission between the equipment and the floor.

Key Features

• 816 lb load capacity for light-to-medium industrial equipment support
• Pivotal base design compensates for floor surface irregularities
• Delrin pad reduces vibration transmission and protects floor surfaces
• Steel stud construction for durability under sustained static loads
• M20 bolt thread size for compatibility with standard metric fastener systems
• 76.00 mm base diameter provides a stable contact footprint

Compatibility

Designed as an OEM-style leveling mount for industrial machinery, equipment frames, and fabricated assemblies that require M20 studded leveling feet with a pivotal base and a load rating at or below 816 pounds per mount.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using standard metric wrenches. Before installation, ensure the equipment is de-energized and any hydraulic or pneumatic pressure is relieved. Thread the stud into the equipment base to the required engagement depth before positioning and leveling. Do not exceed the rated 816 lb load capacity per mount point, and confirm that the mounting surface can sustain the applied load.
