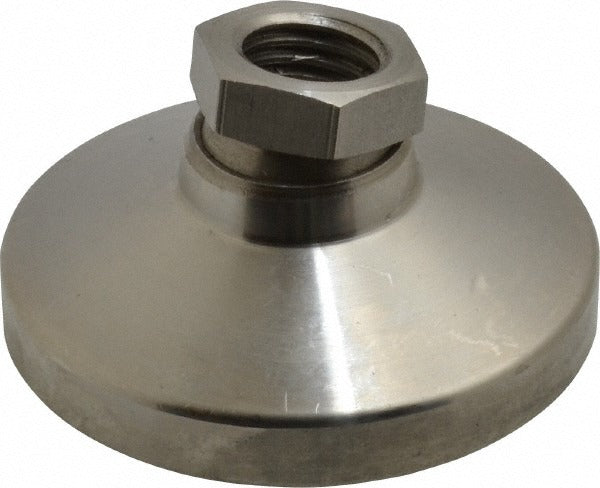

Gibraltar MS-TW3-G Tapped Pivotal Leveling Mount M16

Product Description

The GIBRALTAR MS-TW3-G is a tapped pivotal leveling mount designed for heavy-duty industrial equipment positioning and alignment applications. It accepts an M16 threaded stud and features a stainless steel pad with a steel stud construction. The base diameter measures 63.5 millimeters, and the overall installed length is 31.70 millimeters. With a load capacity of 2,721 kN, this mount handles substantial static and dynamic loads, making it suitable for precision leveling of machinery, fabrication equipment, and structural frames. Installation is typically performed by millwrights, industrial maintenance technicians, or mechanical contractors.

This leveling mount is used in industrial and commercial settings where equipment must be leveled on uneven floors or adjusted for precise alignment. The pivotal pad design allows the foot to articulate slightly, accommodating minor floor irregularities without transferring uneven stress to the stud or mounting surface. Typical applications include machine tool bases, conveyors, production equipment, and heavy fabrication fixtures. The stainless steel pad resists corrosion in wet or chemically active environments, while the steel stud provides the structural rigidity needed under high compressive load.

Key Features

• M16 threaded stud for compatibility with standard metric tapped mounting holes
• Pivotal pad design accommodates minor floor surface irregularities
• Stainless steel pad offers corrosion resistance in demanding environments
• High load capacity of 2,721 kN suitable for heavy industrial machinery
• 22 mm hex size allows for standard wrench adjustment during leveling
• Compact overall length of 31.70 millimeters minimizes floor clearance requirements

Compatibility

Designed as an OEM-style replacement or direct-fit leveling mount for industrial equipment with M16 tapped mounting points requiring a pivotal foot style.

Installation Notes

Installation is performed by threading the M16 stud into the equipment base or frame tapped hole and adjusting height using a 22 mm wrench on the hex section. Power down and de-energize all connected equipment before repositioning or adjusting leveling mounts under load. Ensure the floor surface and mounting thread engagement meet the load requirements before final tightening. Follow applicable facility safety and machinery installation codes during setup.
