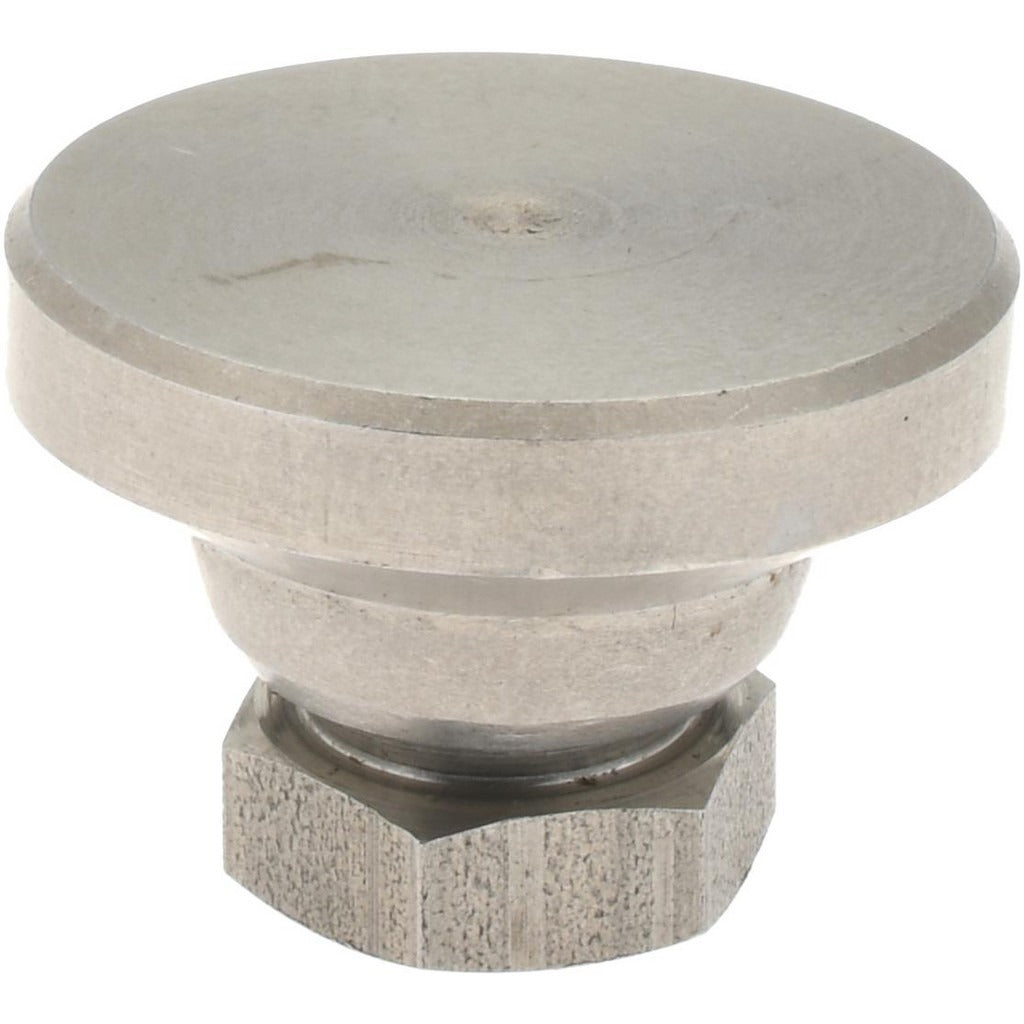

Gibraltar MS-TW0-G Tapped Pivotal Leveling Mount M8

Product Description

The GIBRALTAR MS-TW0-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. It features an M8 threaded steel stud and a stainless steel pad, allowing the base to pivot and self-level on uneven surfaces. The mount has a base diameter of 25.5 mm and an overall length of 17.80 mm. With a load capacity of 453 kN, this mount is built for heavy-duty stationary equipment installations. It is typically installed by millwrights, maintenance technicians, and mechanical contractors during equipment setup and alignment work.

This leveling mount is suited for use in manufacturing facilities, industrial plants, and commercial settings where precise machine leveling is required. The pivoting pad compensates for floor irregularities, reducing stress on equipment frames and mounting structures. The M8 thread size makes it compatible with a wide range of light-to-medium frame equipment bases that use metric fastener patterns. Stainless steel pad construction resists corrosion in wet or chemically active environments.

Key Features

• Pivotal pad design self-adjusts to uneven or angled mounting surfaces
• 453 kN load capacity supports heavy stationary equipment
• M8 threaded steel stud for secure, adjustable height installation
• Stainless steel pad provides corrosion resistance in demanding environments
• Compact 25.5 mm base diameter fits tight equipment foot clearances
• 17.80 mm overall length keeps equipment profile low

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial and commercial equipment with M8 metric threaded mounting feet.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Before installing, ensure all equipment is de-energized and safely supported. Thread the steel stud into the equipment base foot and adjust height to achieve level, then verify load is evenly distributed across all mounts before returning equipment to service. Follow applicable facility equipment installation standards and manufacturer torque specifications for the equipment frame being mounted.
