Gibraltar MS-SW5-G Studded Pivotal Leveling Mount 9072 Lb

Product Description

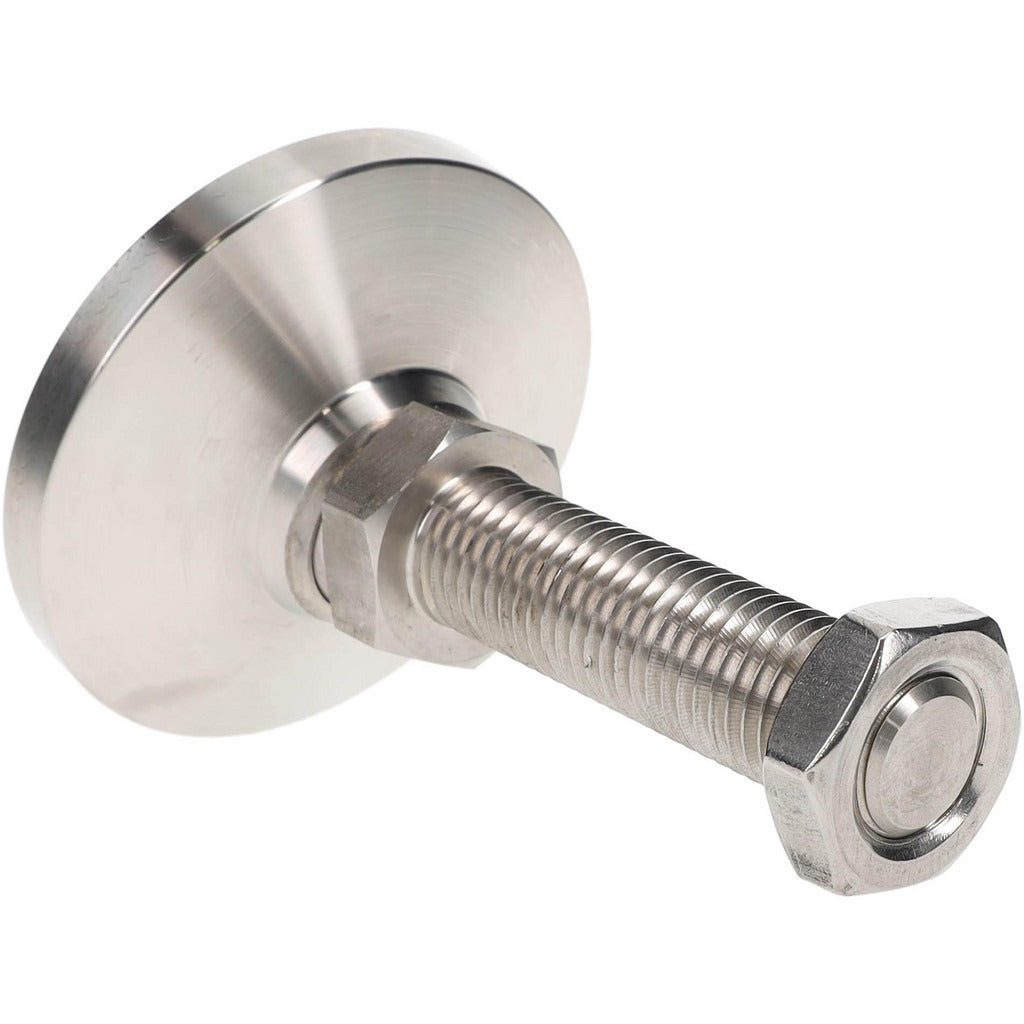

The GIBRALTAR MS-SW5-G is a studded pivotal leveling mount designed to support and level heavy equipment in industrial and commercial installations. Built with a stainless steel pad and stainless steel stud, this mount delivers a load capacity of 9,072 lb, making it suitable for demanding applications where stability and corrosion resistance are required. The pivotal design allows for angular adjustment, compensating for uneven floors or sloped surfaces. The M24 bolt thread size and a thread length of 89 millimeters provide a secure mechanical connection. Maintenance technicians, millwrights, and equipment installers work with this type of mount during machinery placement and alignment procedures.

This leveling mount is suited for use under heavy machinery, HVAC equipment bases, compressors, pumps, and similar industrial or commercial equipment requiring precise leveling and vibration isolation. The stainless steel construction makes it appropriate for environments with moisture exposure or wash-down conditions. The base diameter of 101 millimeters distributes load across the mounting surface, reducing point loading on floors and equipment frames.

Key Features

• 9,072 lb load capacity for heavy-duty equipment support
• Stainless steel pad and stud for corrosion resistance in wet or harsh environments
• Pivotal design allows angular adjustment to compensate for uneven or sloped mounting surfaces
• M24 bolt thread size with 89 mm thread length for a secure, positive connection
• 101 mm base diameter distributes load and reduces floor point pressure
• Overall length of 136 inches accommodates height adjustment needs

Compatibility

Designed as an OEM-style leveling mount for heavy industrial and commercial equipment requiring a studded pivotal mount with M24 thread and a 9,072 lb load rating.

Installation Notes

Installation is typically performed by millwrights, mechanical contractors, or qualified equipment installers. Before installation, ensure the equipment is de-energized and any fluid systems are depressurized and locked out per applicable safety procedures. Use appropriate torque equipment rated for M24 fasteners and verify the mounting surface can support the rated load. Check local building and mechanical codes for anchoring and vibration isolation requirements that may apply to the specific equipment being mounted.
