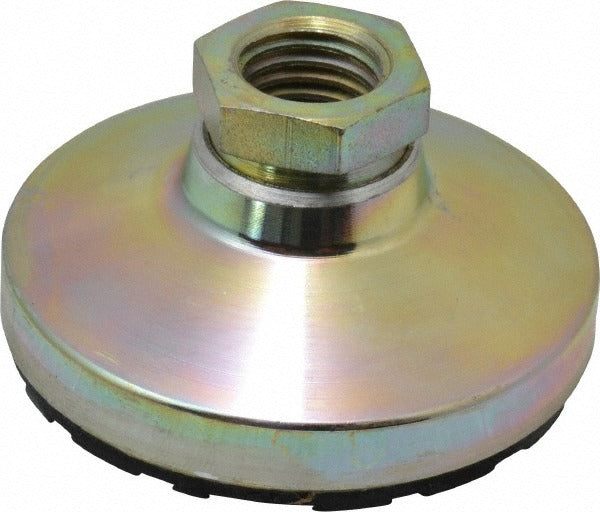

Gibraltar MN-TS3-G Tapped Pivotal Leveling Mount M16

Product Description

The GIBRALTAR MN-TS3-G is a tapped pivotal leveling mount designed for industrial machinery and equipment positioning applications. It features an M16 threaded steel stud and a rubber pad base that allows for self-leveling adjustment on uneven or slightly angled surfaces. With a load capacity of 544 kN, this mount is built for heavy-duty stationary equipment requiring stable, vibration-dampened footing. The 63.5 mm base diameter provides a firm contact footprint, while the pivoting action compensates for surface irregularities without requiring shim stacking. Maintenance technicians and millwrights install these mounts during initial machine setup or as replacements on existing equipment.

This leveling mount is suited for use under stationary industrial machinery such as lathes, presses, compressors, generators, and fabrication equipment in manufacturing or plant environments. It is appropriate for both new equipment installations and retrofits where floor conditions are imperfect or where vibration isolation is needed at the base of the machine. The rubber pad helps reduce transmitted vibration and protects floor surfaces from direct metal contact.

Key Features

• 544 kN rated load capacity for heavy industrial equipment support
• M16 threaded steel stud for secure anchoring into equipment base
• Pivotal design self-levels on non-flat or slightly angled floor surfaces
• Rubber pad dampens vibration and prevents floor surface damage
• 63.5 mm base diameter provides stable contact footprint
• Compact overall length of 31.7 mm suits tight under-frame clearances

Compatibility

Designed as an OEM-style replacement or new-installation leveling foot for industrial machinery and equipment with M16 threaded mounting provisions.

Installation Notes

Installation is performed by millwrights or maintenance technicians during machine setup or replacement service. Power down and de-energize all connected equipment before accessing the machine base. Thread the steel stud into the equipment mounting hole and tighten with a 22 mm hex wrench to secure the mount. Verify machine level across multiple axes using a precision level before returning equipment to service.
