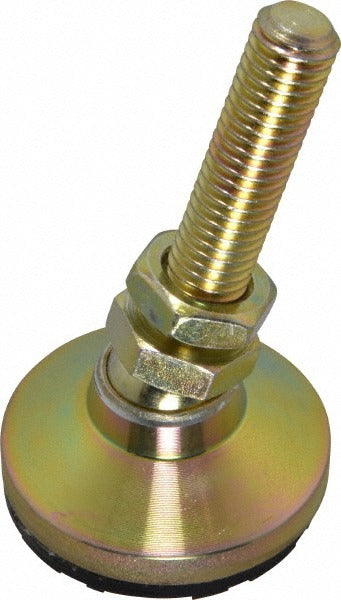

Gibraltar MN-SW2-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR MN-SW2-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and industrial assemblies. The mount features a steel stud with M12 bolt thread and a rubber pad base that absorbs vibration and protects floor surfaces. With a load capacity of 317 kN and a base diameter of 47.6 mm, this mount is built for demanding trade and industrial environments. Maintenance technicians and millwrights use this type of mount when precise equipment leveling is required without welding or permanent fastening. The pivoting action of the base allows the foot to compensate for uneven floor surfaces while maintaining firm, even contact.

This leveling mount is suited for use in commercial, industrial, and light manufacturing settings where equipment must be leveled and stabilized on concrete, tile, or finished flooring. Typical applications include HVAC unit bases, compressor skids, electrical enclosures, generator frames, and general machinery positioning. The rubber pad base makes it appropriate for installations where floor protection or vibration isolation is a secondary concern alongside primary load support.

Key Features

• 317 kN load capacity supports heavy industrial and commercial equipment
• M12 steel stud provides strong threaded attachment to equipment frames
• 47.6 mm base diameter rubber pad distributes load and dampens vibration
• Pivotal base design compensates for minor floor irregularities
• 51 mm thread length allows for meaningful height and level adjustment
• Overall length of 79 inches accommodates a range of clearance requirements

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for industrial machinery, equipment enclosures, and mechanical assemblies requiring M12 threaded studded foot hardware.

Installation Notes

Installation is typically performed by millwrights, HVAC mechanics, or equipment maintenance technicians. Thread the M12 stud into the equipment base or mounting plate and adjust height until the equipment is level, using a standard level and wrench. Ensure the rubber pad rests fully flat on the floor surface before final tightening to maximize load distribution. Always confirm that the combined load across all mount points does not exceed the rated capacity per mount.
