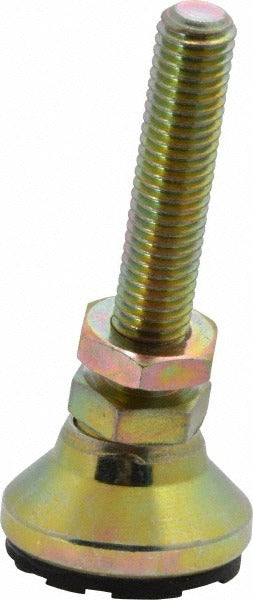

Gibraltar MN-SW1-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR MN-SW1-G is a studded pivotal leveling mount designed to provide stable, adjustable support for equipment and machinery in industrial and commercial applications. The mount combines a steel stud with a rubber pad base to absorb vibration and allow fine-tuned leveling adjustments. It carries a load capacity of 136 kN and features an M10 bolt thread for secure fastening. The pivoting action of the rubber pad accommodates minor surface irregularities, keeping supported equipment level and reducing transmitted vibration. Technicians and millwrights working on equipment installation and alignment will find this mount a direct-fit leveling solution.

This leveling mount is suited for use in light industrial, HVAC equipment pad, and commercial machinery installations where precise leveling and vibration isolation are required. The rubber pad base is appropriate for contact with concrete, steel, and other hard floor surfaces. The M10 stud thread makes it compatible with standard metric-threaded equipment frames and bases commonly found in trade and industrial environments.

Key Features

• 136 kN load capacity for heavy-duty equipment support
• M10 bolt thread size for standard metric fastening
• Rubber pad base provides vibration damping and surface grip
• Steel stud construction for durability under sustained load
• Pivotal base accommodates uneven or angled mounting surfaces
• 31.7 mm base diameter for compact footprint

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for equipment frames and bases using M10 metric thread fasteners in industrial and commercial settings.

Installation Notes

Installation is typically performed by millwrights, HVAC mechanics, or equipment technicians. De-energize and lock out any associated equipment before installing or adjusting leveling mounts. Thread the M10 stud into the equipment base and adjust mount height to achieve level before final tightening. Verify load distribution across all mount points before returning equipment to service.
