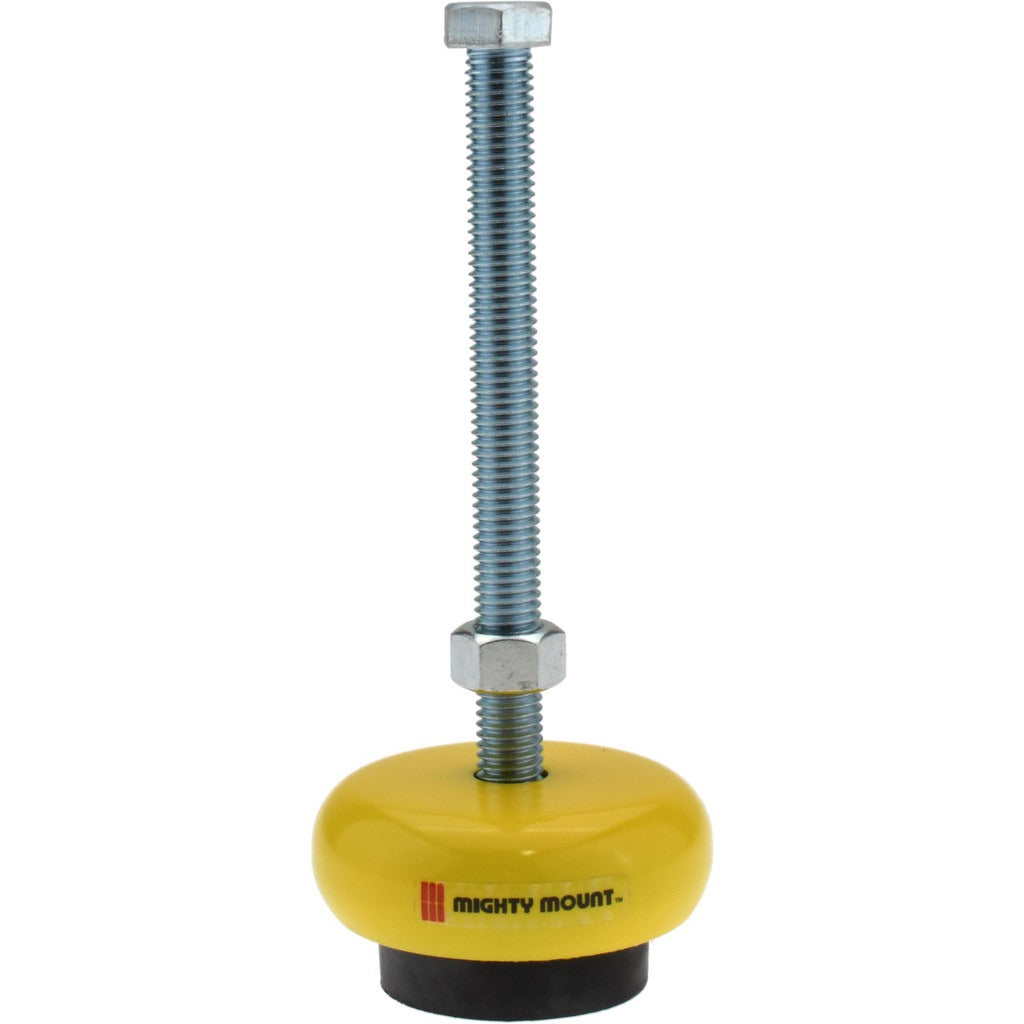

Gibraltar MM80136-G Machine Leveling Mount 500 Lb

Product Description

The GIBRALTAR MM80136-G is a machine leveling mount designed to support and level industrial equipment on shop floors, production lines, and similar heavy-duty work surfaces. It features a zinc stud with a 1/2-13 thread size and a 6-inch stud length, paired with an elastomer pad bonded to a 3-inch diameter base. The mount handles a load capacity of 500 pounds, making it suitable for stabilizing mid-weight machinery. Installed by maintenance technicians and millwrights, it provides vibration damping and precise height adjustment through the threaded stud. The elastomer pad protects flooring surfaces and helps isolate vibration from running equipment.

This leveling mount is used in manufacturing, fabrication, and industrial maintenance applications where machinery must be leveled and stabilized on concrete or finished floors. Typical installations include machine tools, compressors, pump bases, and similar equipment requiring firm, adjustable footing. The 1/2-13 thread size is a standard UNC thread compatible with a wide range of threaded equipment frames and mounting plates. The 3-inch base diameter distributes load across the floor surface, reducing point loading and movement during operation.

Key Features

• 500 lb load capacity per mount for mid-weight machinery support
• 1/2-13 UNC thread size for compatibility with standard machine frames
• 6-inch zinc stud provides extended adjustment range
• 3-inch base diameter distributes load and reduces floor movement
• Elastomer pad isolates vibration and protects floor surfaces
• Zinc stud construction resists corrosion in typical shop environments

Compatibility

Designed as a standard machine leveling mount for industrial equipment with 1/2-13 threaded mounting provisions, including machine tools, compressors, pumps, and fabrication equipment requiring adjustable floor support.

Installation Notes

Machine leveling mounts are typically installed by millwrights or maintenance mechanics during equipment setup or repositioning. Before installation, confirm the equipment frame thread size matches the 1/2-13 stud thread to avoid cross-threading. Thread the stud into the equipment frame to the desired height and tighten the locknut if applicable to secure the leveled position. Ensure the elastomer pad sits flat on a clean, debris-free floor surface for consistent load distribution and vibration isolation.
