Gibraltar MLP943-G Die Mold Leader Pin Steel

Product Description

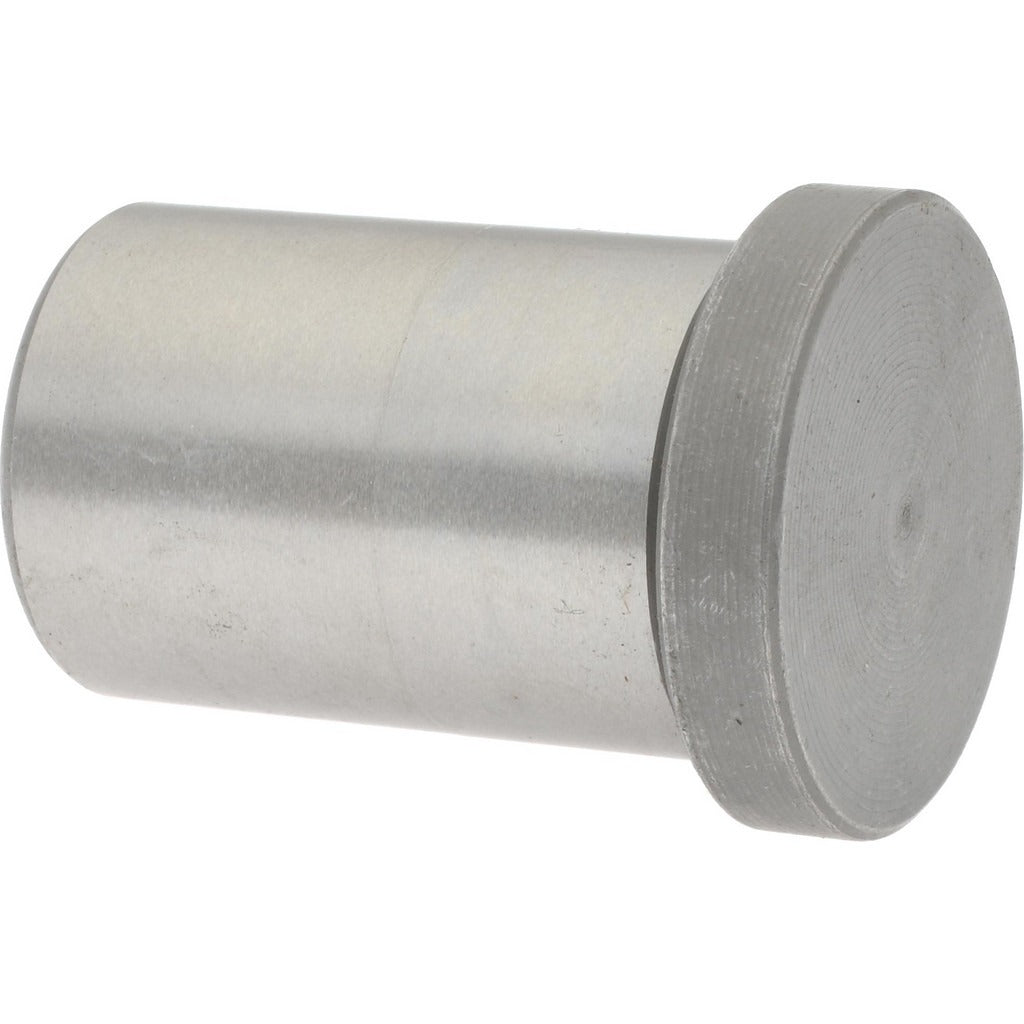

The GIBRALTAR MLP943-G is a steel die mold leader pin designed for precision alignment in die and mold assemblies. It features a pin diameter of 0.999 inches and an overall length (OAL) of 1.75 inches, with a head diameter of 1.24 inches and a head height of 0.25 inches. The OAL tolerance is +0.0000 / -0.0600 inches, providing close-tolerance fit for consistent mold alignment. This component is typically installed by tool and die makers, mold technicians, and precision machining professionals working in production tooling environments.

This leader pin is suited for use in injection molds, stamping dies, and similar tooling assemblies where accurate core and cavity alignment is required. The steel construction provides the durability needed for repeated cycling in production tooling. Sold individually, it is appropriate for direct replacement or new tooling builds requiring a 0.999-inch nominal pin diameter.

Key Features

• Pin diameter of 0.999 inches for close-tolerance mold alignment
• Overall length of 1.75 inches with a tolerance of +0.0000 / -0.0600 inches
• Head diameter of 1.24 inches and head height of 0.25 inches for positive seating
• Steel construction for durability in high-cycle tooling applications
• Sold as a single unit with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or direct-fit component for die and mold assemblies requiring a 0.999-inch diameter leader pin with a 1.75-inch overall length.

Installation Notes

Installation is performed by qualified tool and die makers or mold technicians. Power down and lock out all associated press or molding equipment before servicing any tooling components. Ensure the pin bore is clean and free of debris before pressing or sliding the leader pin into position. Verify fit and alignment before returning the mold or die assembly to production.
