Gibraltar MKNL-4-PT-G Knob Handle Spring Plunger M12x1.75

Product Description

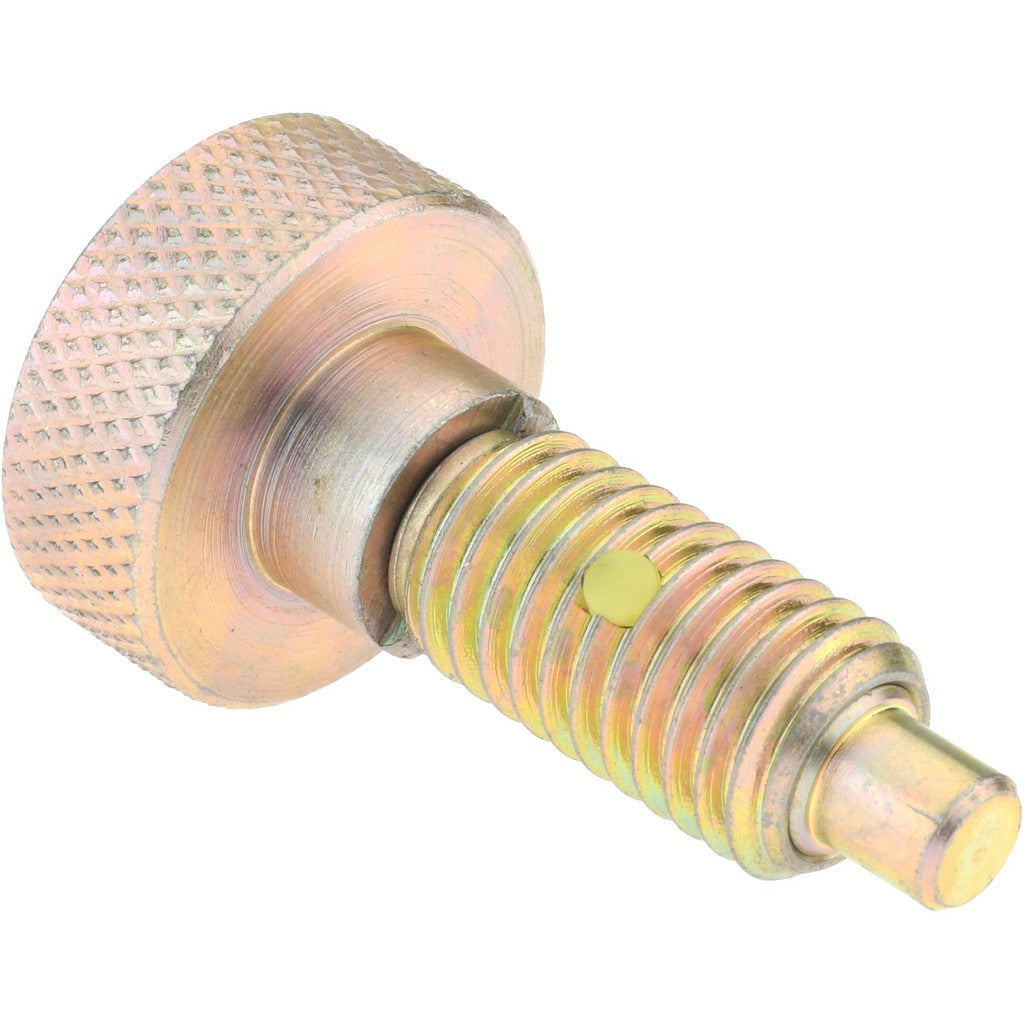

The GIBRALTAR MKNL-4-PT-G is a knob handle spring plunger designed for indexing, positioning, and locking applications in industrial and mechanical assemblies. This non-locking plunger features a knurled knob head and a steel body with a zinc gold chromate finish. It is threaded M12x1.75 with a body length of 1.14 inches and delivers a spring end force range of 1 pound initial to 10 pounds final. The maximum plunger diameter is 0.236 inches with a plunger projection of 0.236 inches. Machinists, tool and die technicians, and maintenance mechanics install this type of component in jigs, fixtures, machine tool tables, and similar equipment requiring repeatable positioning.

This spring plunger is suited for use in light-duty to moderate-duty fixturing applications where controlled spring force is needed to hold a workpiece or component in a repeatable indexed position. The knurled knob allows hand adjustment without tools, making it practical for setups that require frequent repositioning. The zinc gold chromate finish provides corrosion resistance for general shop and industrial environments. It is sold individually and is appropriate for both original equipment builds and maintenance replacement in existing fixture assemblies.

Key Features

• M12x1.75 thread size with 0.905 inches of thread length for secure installation in threaded housings
• Non-locking plunger type with 1 pound initial end force and 10 pounds final end force
• Knurled knob head style allows tool-free hand adjustment in the field
• Steel construction with zinc gold chromate finish for corrosion resistance in shop environments
• Maximum plunger diameter of 0.236 inches with plunger projection of 0.236 inches
• Locking element included to secure the plunger assembly at the desired position

Compatibility

Designed as an OEM-style or replacement spring plunger for industrial fixtures, jigs, machine tool tables, and mechanical assemblies using M12x1.75 threaded bores requiring a knob handle style plunger.

Installation Notes
