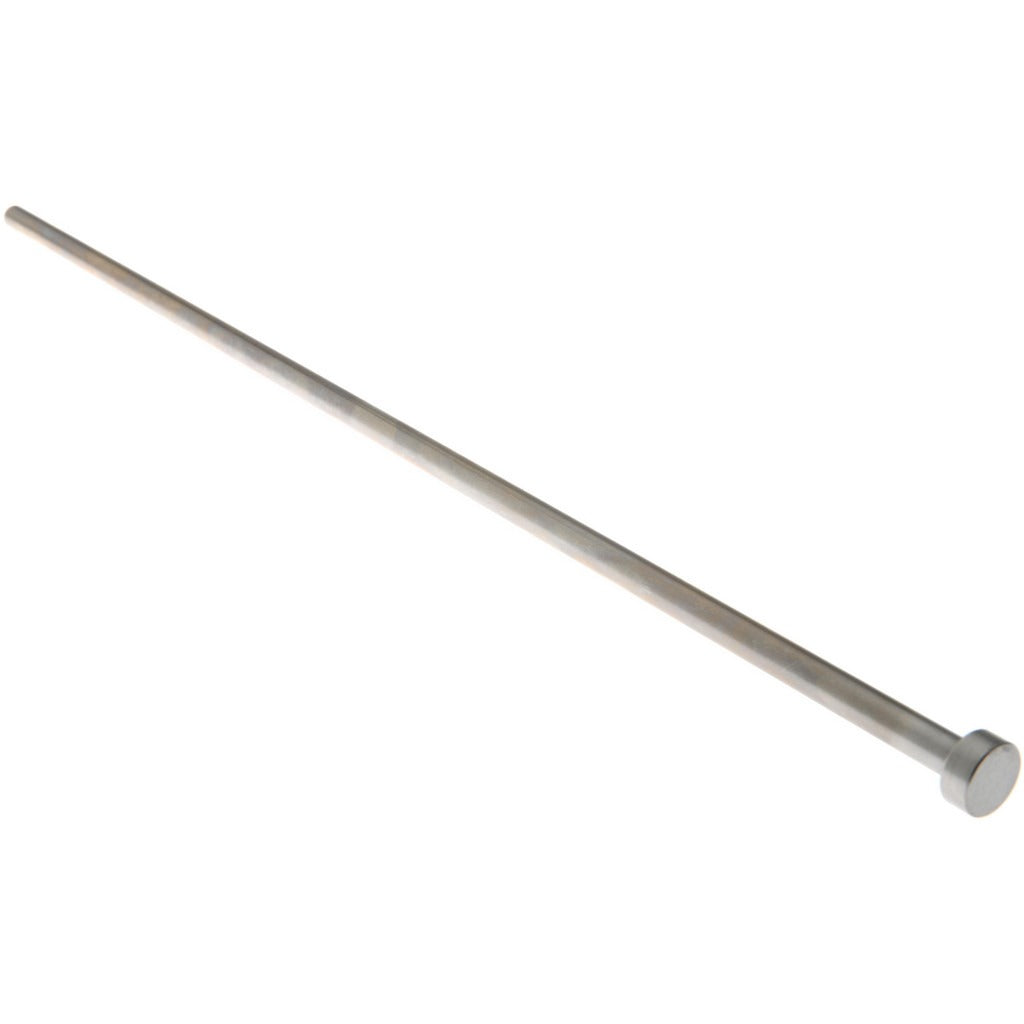

Gibraltar MEP1053-G Straight Ejector Pin 6.5mm 315mm Steel

Product Description

The GIBRALTAR MEP1053-G is a straight ejector pin manufactured from steel with a nitride finish, designed for use in injection mold tooling applications. The pin measures 6.5 mm in diameter and 310 mm in pin length, with an overall length of 315 mm. The head measures 12 mm in diameter and 5 mm in height. The nitride surface treatment improves hardness and wear resistance, extending service life in repetitive cycling mold operations. This type of component is typically installed and serviced by toolmakers, mold technicians, and precision machinists working on injection mold assemblies.

Straight ejector pins like the MEP1053-G are used in plastic injection molds to push finished parts out of the mold cavity at the end of each cycle. They seat in the ejector plate and pass through the mold core or cavity block. This pin is suited for standard straight-bore ejector pin pockets in production injection molds across both prototype and high-volume manufacturing environments. Sold individually with a minimum order quantity of one.

Key Features

• Steel construction with nitride finish for improved surface hardness and wear resistance
• 6.5 mm pin diameter with a 12 mm head diameter and 5 mm head height
• 310 mm usable pin length and 315 mm overall length
• Straight ejector pin geometry for compatibility with standard ejector plate assemblies
• Sold as a single unit with no minimum order requirement above one piece

Compatibility

Designed as an OEM-style replacement or direct-fit component for injection mold assemblies requiring a straight ejector pin with a 6.5 mm pin diameter and 315 mm overall length.

Installation Notes

Installation should be performed by a qualified toolmaker or mold technician. The mold must be fully de-energized, cooled, and removed from the press before ejector pin service is performed. Verify bore diameter, pin length, and head seat depth against the mold drawing before installation. Do not force the pin into an undersized bore, as this can cause galling or damage to the mold plate.
