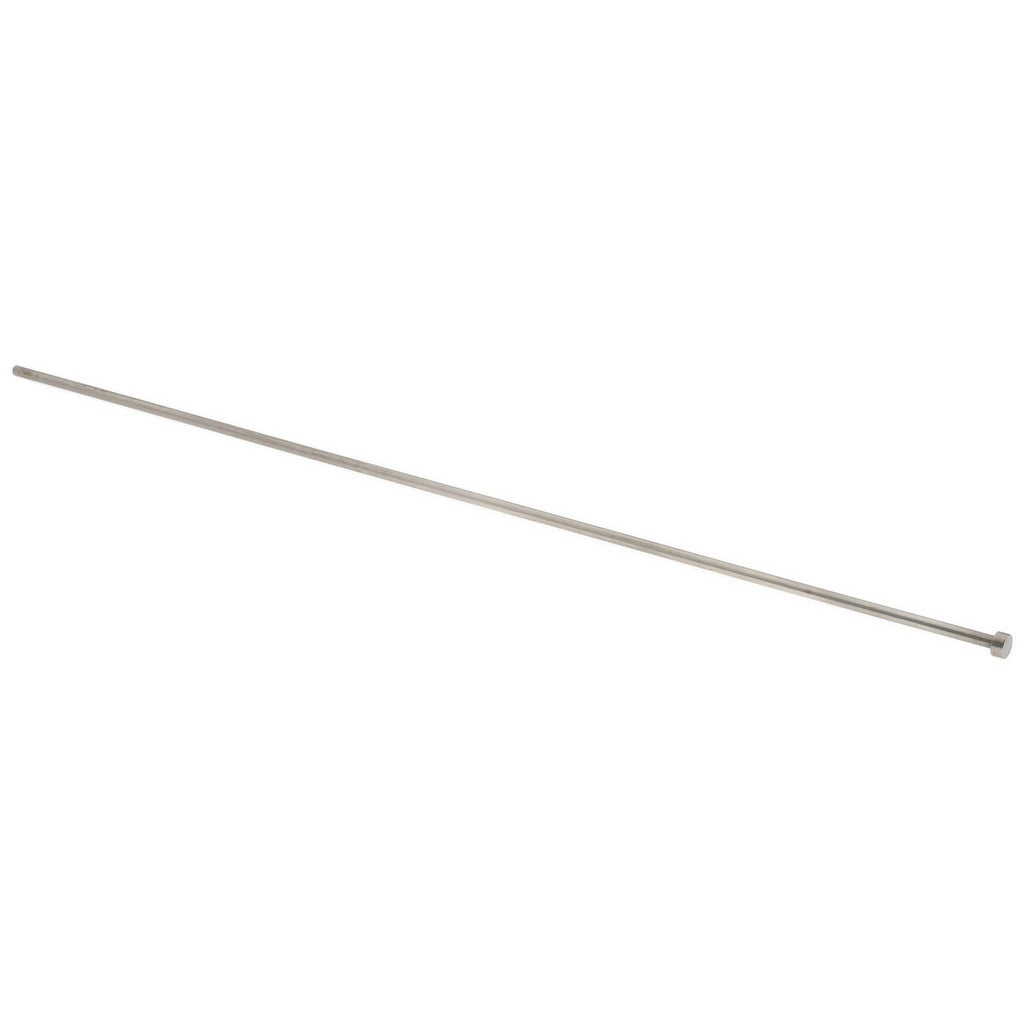

Gibraltar MEP1020-G Straight Ejector Pin 3.2mm 315mm Steel

Product Description

The GIBRALTAR MEP1020-G is a straight ejector pin designed for use in injection mold tooling and die casting applications. It features a 3.2 mm pin diameter and a 315 mm overall length, with a 312 mm usable pin length. The head measures 6 mm in diameter and 3 mm in height, providing a secure seating surface within the mold base. Constructed from steel with a nitride finish, this pin offers improved surface hardness and wear resistance for demanding production environments. It is installed and serviced by tool and die makers, mold technicians, and precision machining professionals.

This ejector pin is suited for plastic injection molds, compression molds, and similar tooling where consistent part ejection is required. The straight profile and standardized dimensions make it a direct-fit option for mold bases designed around metric ejector pin standards. It is commonly used in both prototype and production mold setups across industrial manufacturing environments.

Key Features

• 3.2 mm pin diameter for metric mold tooling applications
• 315 mm overall length with 312 mm effective pin length
• 6 mm head diameter and 3 mm head height for standard mold plate seating
• Steel construction with nitride finish for enhanced surface hardness and wear resistance
• Straight ejector profile for consistent, reliable part ejection
• Single-piece packaging with no minimum order above one unit

Compatibility

Designed as a standard-metric replacement ejector pin for injection mold bases and die tooling requiring a 3.2 mm diameter straight ejector pin with 315 mm overall length.

Installation Notes

Ejector pins are installed and replaced by qualified tool and die technicians or mold maintenance personnel. Always de-energize and fully cool the mold before servicing ejector components. Ensure the ejector plate and retainer plate are properly aligned before seating the pin head to avoid bending or binding during operation. Do not modify pin length or head geometry in the field without engineering approval.
