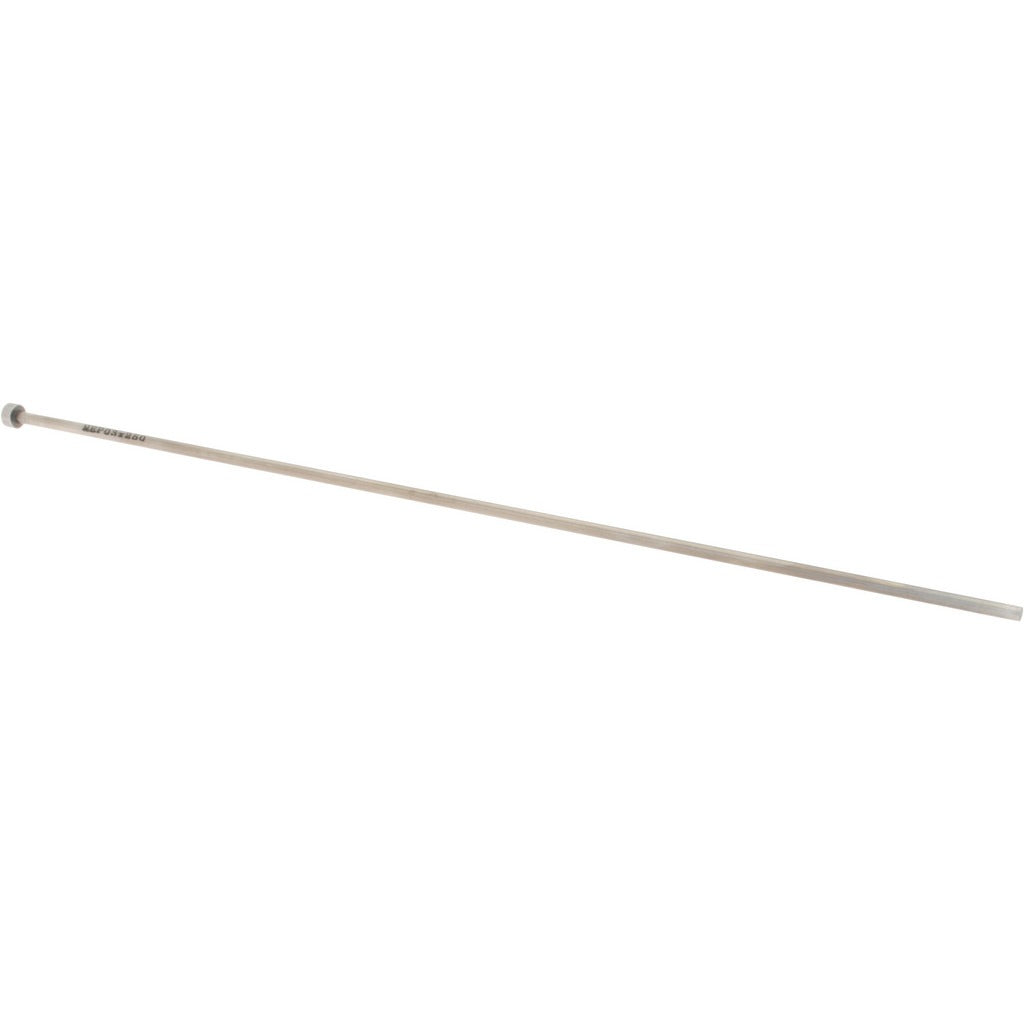

Gibraltar MEP1019-G Straight Ejector Pin 3.2mm 250mm Steel

Product Description

The GIBRALTAR MEP1019-G is a straight ejector pin used in injection mold tooling to push finished parts out of a mold cavity at the end of each cycle. Machined from steel with a nitride finish for surface hardness and wear resistance, this pin measures 3.2 mm in diameter with a 247 mm pin length and 250 mm overall length. The head is 6 mm in diameter and 3 mm tall, providing a positive shoulder for seating in the ejector plate. Toolmakers and moldmakers rely on this style of pin for repeatable, low-maintenance ejection in both prototype and production mold bases.

Straight ejector pins of this type are used in plastic injection molds across a wide range of industries, including automotive, consumer products, and industrial components. This pin is suited for use in standard ejector plate assemblies where a 3.2 mm bore and a flat-head retainer are required. It fits applications demanding close dimensional tolerances and consistent surface hardness to resist galling and wear over high-cycle runs.

Key Features

• Steel construction with nitride finish for improved surface hardness and extended service life
• 3.2 mm pin diameter with 247 mm pin length for use in standard ejector plate assemblies
• 6 mm head diameter and 3 mm head height provide positive retention in the ejector plate
• 250 mm overall length suits medium to large mold bases
• Straight-pin geometry simplifies installation and replacement without special tooling

Compatibility

Designed as a standard-style replacement ejector pin for injection mold tooling requiring a 3.2 mm straight ejector pin with a flat head and 250 mm overall length.

Installation Notes

Installation is performed by toolmakers or moldmakers during mold assembly or scheduled maintenance. Always verify the ejector plate bore diameter matches the pin diameter before installation to ensure proper fit and prevent binding. Confirm the mold is fully de-energized, depressurized, and cooled before disassembling the ejector assembly. Follow shop safety procedures and applicable tooling standards when working inside mold bases.
