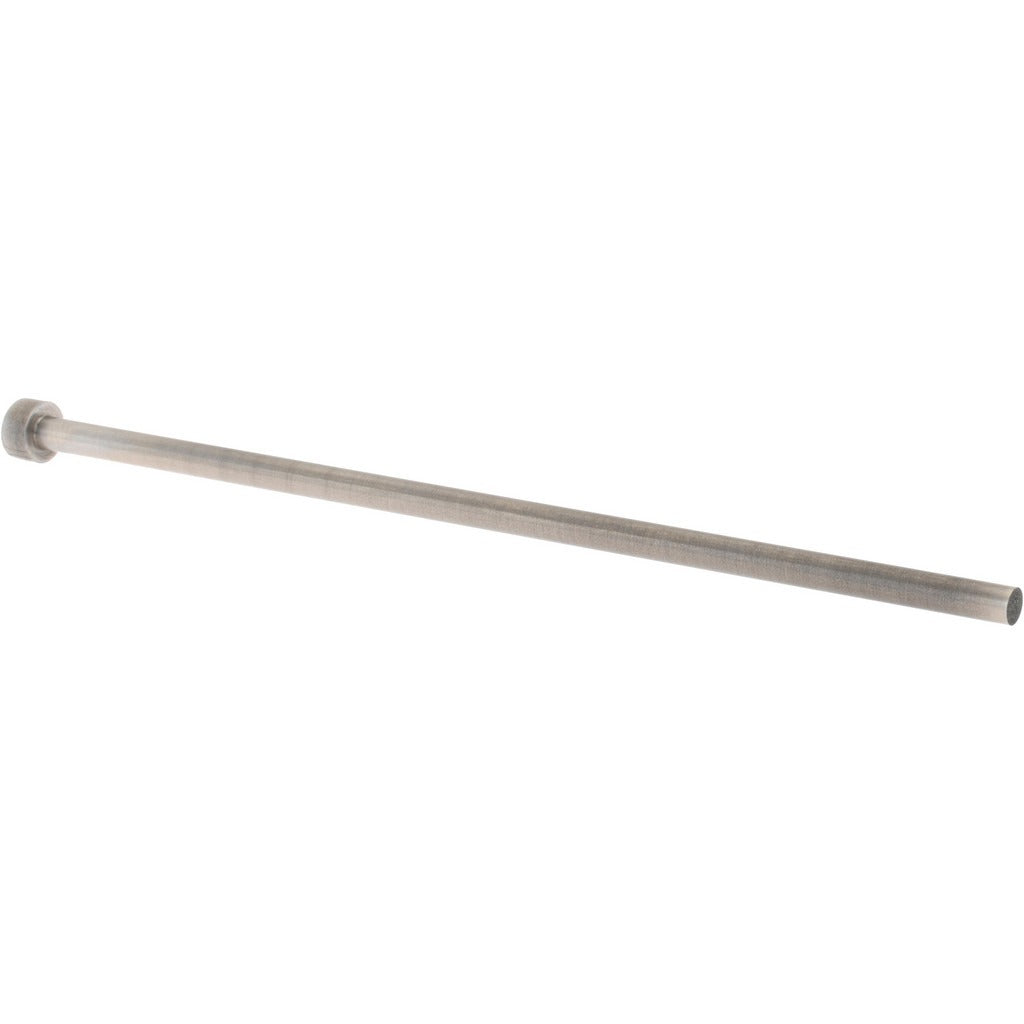

Gibraltar MEP1017-G Straight Ejector Pin 3.2mm 100mm Steel

Product Description

The GIBRALTAR MEP1017-G is a straight ejector pin designed for use in injection mold tooling applications. It features a 3.2 mm pin diameter and a 100 mm overall length, with a 97 mm usable pin length and a 6 mm head diameter with a 3 mm head height. Constructed from steel with a nitride finish, this pin provides wear resistance and dimensional stability under repeated cycle loads. It is a standard component stocked and replaced by mold makers, tool and die technicians, and moldroom maintenance personnel.

This ejector pin is suited for plastic injection mold assemblies where straight ejector pins are required to push finished parts from the mold cavity. The nitride finish reduces surface friction and extends service life in high-cycle production environments. At 100 mm overall length, it fits a range of standard mold base configurations. Single-piece packaging makes it practical for spot replacements during mold maintenance without ordering in bulk.

Key Features

• Straight ejector pin geometry for standard mold ejection systems
• 3.2 mm pin diameter for precise fit in corresponding ejector pin bushings
• 97 mm pin length with 6 mm head diameter and 3 mm head height
• Steel construction with nitride finish for wear resistance and reduced friction
• Single-piece minimum order quantity for maintenance and replacement use

Compatibility

Designed as a standard straight ejector pin replacement for injection mold tooling assemblies requiring a 3.2 mm pin diameter and 100 mm overall length.

Installation Notes

Ejector pin replacement and installation should be performed by qualified mold makers or tool and die technicians with the mold fully removed from the press and all energy sources locked out. Verify pin diameter and length against existing tooling drawings before installation to confirm fit. Inspect the ejector plate, retainer plate, and corresponding bushing for wear before seating the new pin.
