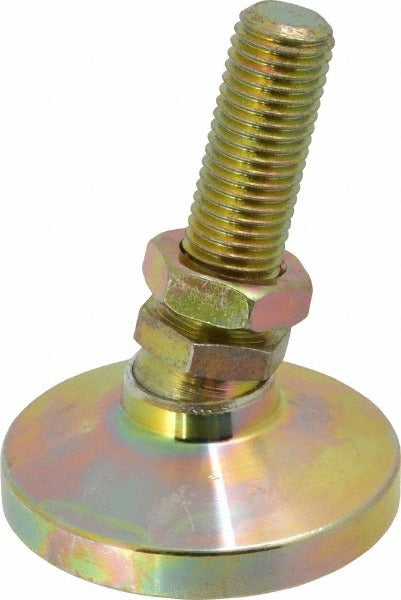

Gibraltar MB-SW3-G Studded Pivotal Leveling Mount M16

Product Description

The GIBRALTAR MB-SW3-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. Built with a steel pad and steel stud, it delivers a load capacity of 2,721 kilograms (approximately 5,999 pounds) while allowing angular adjustment through its pivoting base. The M16 bolt thread size and 82.5-inch overall length accommodate a wide range of installation depths. Licensed millwrights, maintenance technicians, and industrial installers use this type of mount to level and isolate equipment on uneven floors or structural surfaces.

This leveling mount is suited for light industrial and commercial applications where precise leveling and firm equipment anchoring are required. Typical installations include machine bases, conveyor frames, workbenches, and equipment skids. The 63.5 mm base diameter provides a stable footprint, and the pivotal design compensates for minor floor irregularities without requiring shims. The steel construction makes it appropriate for dry indoor environments where load stability and longevity under static or light dynamic loads are priorities.

Key Features

• Load capacity of 2,721 kg (approximately 5,999 pounds) for heavy equipment support
• M16 bolt thread size for standard industrial fastener compatibility
• 63.5 mm base diameter provides a firm, stable footing on hard floors
• Pivotal base design compensates for minor floor angle variations without shimming
• Steel pad and steel stud construction for durability under static load conditions
• Thread length of 51 mm allows adjustable height positioning

Compatibility

Designed as a standard-style studded pivotal leveling mount for machinery bases, equipment frames, and structural assemblies requiring M16 threaded mounting hardware.

Installation Notes

Installation is typically performed by millwrights, maintenance mechanics, or industrial technicians. Before installation, ensure all connected equipment is de-energized and the mounting surface is clean, flat, and capable of supporting the rated load. Use appropriately rated wrenches for M16 hardware and verify thread engagement meets the minimum specified by the equipment manufacturer. Follow applicable facility safety and machinery installation codes when anchoring equipment to floors or frames.
