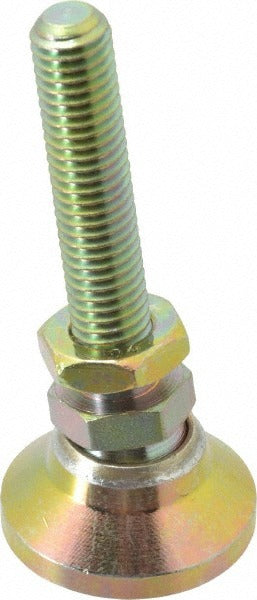

Gibraltar MB-SW1-G Studded Pivotal Leveling Mount M10

Product Description

The GIBRALTAR MB-SW1-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and structural assemblies. The pivoting pad allows the base to self-align on uneven or sloped surfaces, distributing load evenly across the contact area. Built with a steel pad and steel stud, this mount is rated for a load capacity of 1,701 kilograms. The M10 threaded stud extends 51 millimeters of usable thread length, with an overall length of 73 inches as specified. The 31.7-millimeter base diameter keeps the footprint compact for tight installations. Maintenance technicians, millwrights, and general contractors install this type of hardware during equipment commissioning and leveling tasks.

This leveling mount is suited for industrial and commercial applications where equipment must be precisely leveled on concrete, steel, or other hard floor surfaces. Typical use cases include machine bases, control enclosures, workbenches, and frame assemblies that require periodic height or level adjustment. The pivotal pad design makes it especially useful in installations where the mounting surface is not perfectly horizontal.

Key Features

• Load capacity rated at 1,701 kilograms for heavy-duty support
• Pivoting steel pad self-aligns to uneven or angled mounting surfaces
• M10 threaded steel stud with 51 millimeters of thread engagement length
• Compact 31.7-millimeter base diameter for space-constrained installations
• All-steel construction for durability in industrial environments
• Sold individually, allowing quantity-specific procurement per project need

Compatibility

Designed as a standard M10 studded pivotal leveling mount suitable for machinery bases, equipment frames, and structural assemblies requiring adjustable leveling support.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or general contractors during equipment setup or relocation. Before installation, ensure the equipment is de-energized and safely supported. Use appropriately sized wrenches to thread the stud into the tapped hole on the equipment base and adjust the mount height until the assembly is level. Verify load distribution across all mount points before returning the equipment to service.
