Gibraltar MB-SW00-G Studded Pivotal Leveling Mount

Product Description

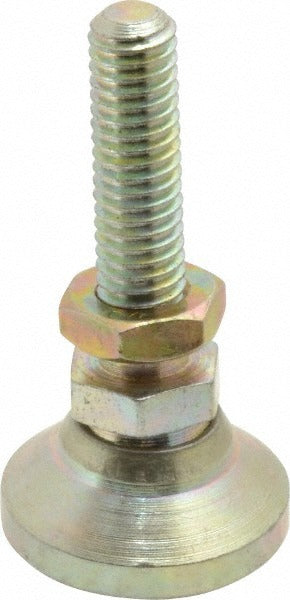

The GIBRALTAR MB-SW00-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and industrial fixtures. It features a steel pad base and a steel stud, giving it the structural integrity to handle a load capacity of 317 kilograms. The pivotal design allows the mount to self-level on uneven surfaces, compensating for minor floor irregularities without requiring shims. The base diameter measures 19 millimeters and the overall length is 38.8 millimeters, with an M6 bolt thread and a 25-millimeter thread length. Licensed millwrights, equipment installers, and industrial maintenance technicians are the typical installers for this type of hardware.

This leveling mount is suited for light to medium-duty industrial and commercial applications where precise leveling and vibration isolation are required at the equipment foot. Typical installations include machine bases, control panel enclosures, workstation legs, and fabricated steel frames. The pivotal pad feature is especially useful on concrete floors that are not perfectly flat, allowing the mount to seat flush without introducing stress into the equipment frame. The compact form factor makes it a practical choice where mounting space at the equipment foot is limited.

Key Features

• Pivotal pad design self-levels on uneven floor surfaces without shimming
• 317 kg load capacity suitable for light to medium-duty equipment support
• Steel pad and steel stud construction for corrosion-resistant durability in industrial environments
• M6 thread size with 25-millimeter thread length for standard metric fastener compatibility
• Compact 19-millimeter base diameter fits tight mounting footprints
• Overall length of 38.8 millimeters for low-profile installations

Compatibility

Designed as a standard metric leveling mount for machinery, enclosures, and fabricated frames requiring an M6 threaded stud and a pivotal steel base pad.

Installation Notes

Installation is typically performed by millwrights or equipment maintenance technicians using standard metric hand tools. Before installing or adjusting leveling mounts on powered equipment, de-energize and lockout the machine per applicable OSHA lockout/tagout procedures. Thread the stud into the equipment foot or mounting bracket to the required engagement depth, then adjust height as needed before tightening the jam nut if applicable. Do not exceed the rated load capacity of 317 kg per mount point.
