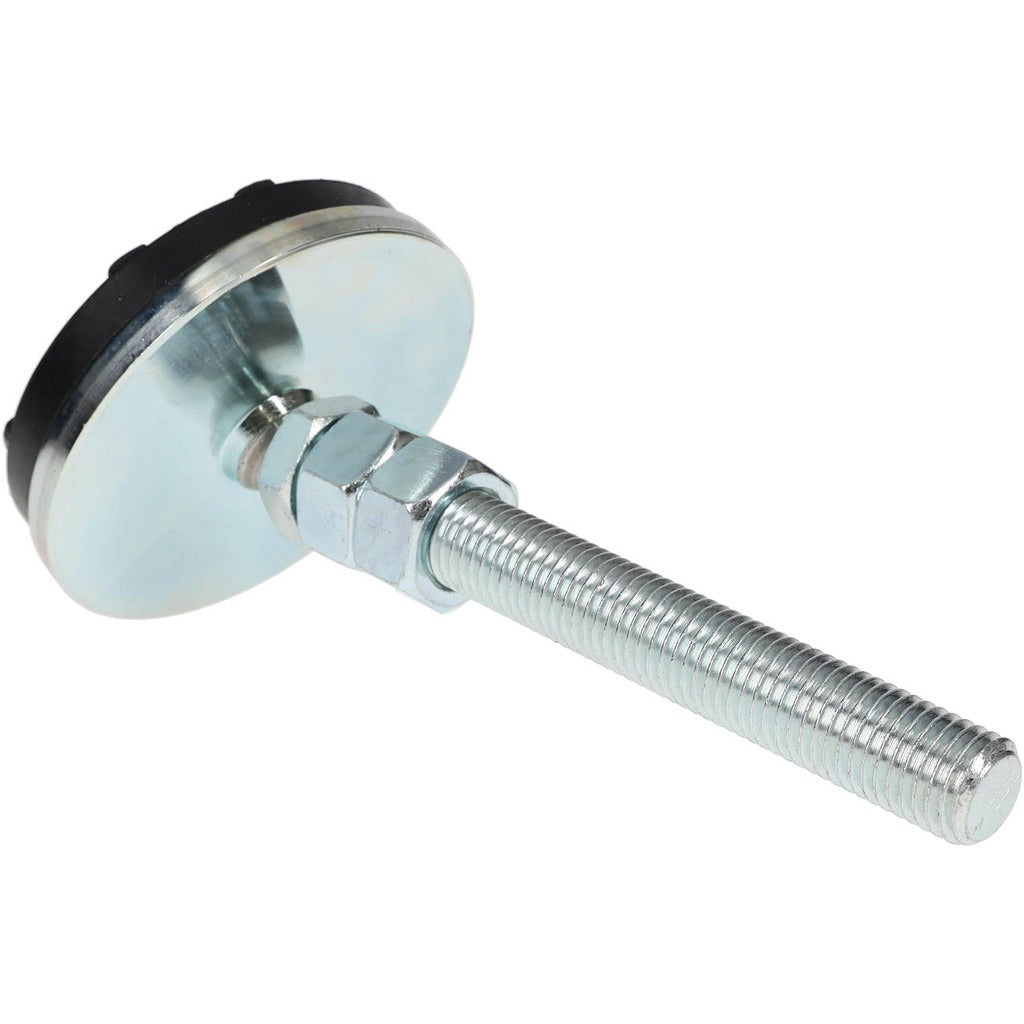

Gibraltar LP4-D6H-G Pivotal Leveling Mount 6000 Lb

Product Description

The GIBRALTAR LP4-D6H-G is a studded pivotal leveling mount designed to support and level heavy equipment in industrial and commercial applications. It features a 4-inch diameter base with a rubber pad underside and a steel stud, providing stable, vibration-dampening support on hard floor surfaces. The mount carries a rated load capacity of 6,000 pounds and extends to a length of 7-13/16 inches, making it suitable for leveling machinery, enclosures, and structural frames. The 3/4-10 bolt thread size ensures compatibility with standard threaded mounting holes. This part is typically installed by millwrights, maintenance technicians, or mechanical contractors during equipment positioning and alignment work.

This leveling mount is suited for use on production floors, mechanical rooms, and commercial facilities where heavy machinery or structural components require precise leveling and load-bearing support. The pivotal design allows the mount to self-adjust to minor floor irregularities, maintaining consistent contact and load distribution without shimming. Applications include leveling industrial machines, HVAC air handlers, compressors, control enclosures, and similar heavy equipment installed on concrete or hard flooring.

Key Features

• 6,000 lb load capacity for heavy equipment support
• 4-inch base diameter with rubber pad for vibration dampening and floor protection
• Pivotal design self-adjusts to minor floor surface irregularities
• Steel stud construction for durability under sustained load
• 3/4-10 bolt thread size fits standard threaded mounting locations
• 7-13/16 inch overall length provides leveling range for varied installations

Compatibility

Designed as an OEM-style leveling mount for heavy industrial and commercial equipment requiring a 3/4-10 threaded stud mount with a 4-inch base and up to 6,000 lb load capacity.

Installation Notes

Installation is typically performed by millwrights or mechanical technicians during equipment setting and alignment. Power down and de-energize any connected equipment before adjusting or repositioning leveling mounts. Ensure the mating threaded hole or nut is clean and free of debris before threading the stud to achieve full thread engagement. Verify that the combined load across all mounts does not exceed the rated capacity per mount.
