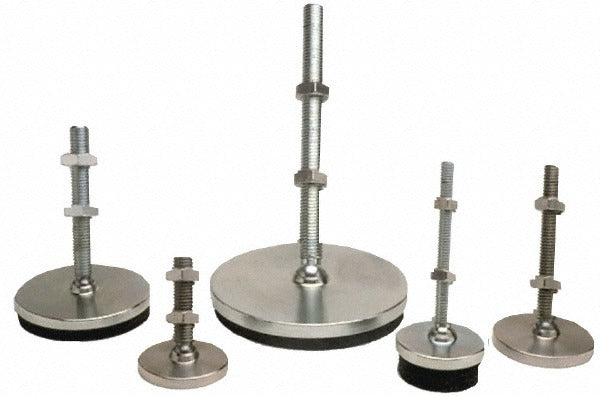

Gibraltar LP4-B4-G Studded Pivotal Leveling Mount 3500 Lb

Product Description

The GIBRALTAR LP4-B4-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment, and fabricated assemblies. The pivoting pad allows the mount to compensate for uneven or angled mounting surfaces, maintaining level positioning under load. Rated at 3,500 lb load capacity, this mount handles demanding industrial and trade applications. The steel stud and steel pad construction provide reliable strength and durability. With a 4-inch base diameter and an overall length of 5.25 inches, it suits a range of equipment footprints. Installed by millwrights, maintenance techs, and mechanical contractors during equipment installation and leveling projects.

This leveling mount is suited for use under stationary machinery, fabricated frames, compressors, pumps, HVAC equipment bases, and similar industrial or commercial equipment requiring a stable, adjustable footing. The pivotal pad design accommodates slight angular misalignment between the equipment base and the floor surface, reducing stress on mounting hardware. It is appropriate for both new installations and equipment repositioning in shop, plant, and mechanical room environments.

Key Features

• 3,500 lb rated load capacity for heavy equipment support
• Pivoting steel pad compensates for uneven or angled mounting surfaces
• 4-inch base diameter provides stable floor contact area
• 5.25-inch overall length allows adjustment range for leveling
• Steel stud and steel pad construction for durability under sustained load
• 1/2-13 bolt thread size for compatibility with standard fastener hardware

Compatibility

Designed as a general-purpose studded pivotal leveling mount for stationary equipment, machinery bases, and fabricated assemblies requiring adjustable footing with a 1/2-13 stud thread.

Installation Notes

Installation is typically performed by millwrights or mechanical contractors as part of equipment setting and alignment. Ensure the mating threaded hole or nut in the equipment base matches the 1/2-13 thread before installation. De-energize and lock out all equipment per applicable safety procedures before placing or adjusting leveling mounts. Do not exceed the rated 3,500 lb load capacity per mount.
