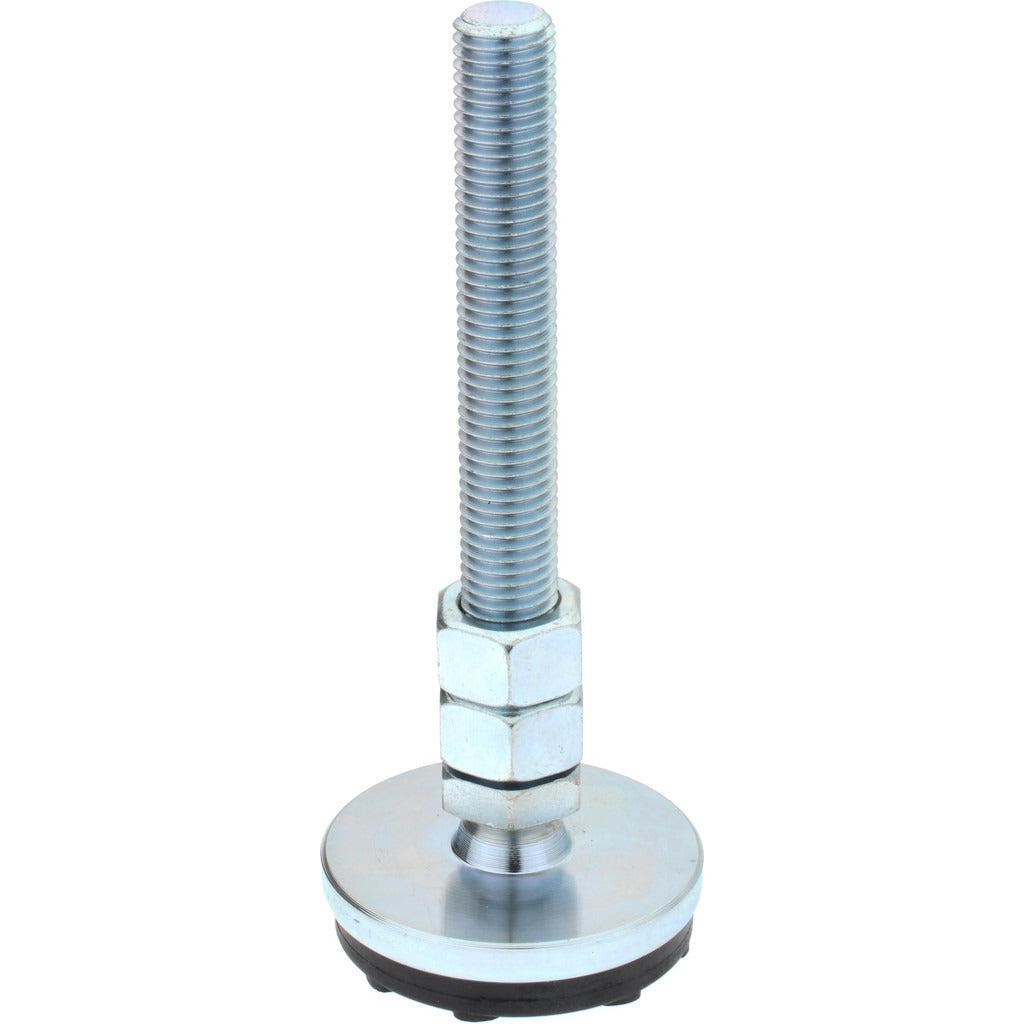

Gibraltar LP3-D6L-G Studded Leveling Pad 5500 Lb

Product Description

The GIBRALTAR LP3-D6L-G is a studded pivotal stud mount leveling pad designed to provide stable, adjustable support for industrial and commercial equipment. Featuring a 3/4-10 bolt thread and a 5,500 lb load capacity, this leveling pad handles heavy-duty applications where precise leveling and vibration isolation are required. The pivotal design allows the pad to adjust to uneven floor surfaces, maintaining even weight distribution across the base. At 1.52 pounds, it is compact enough for tight installations while delivering the structural integrity needed for demanding environments. Licensed mechanical tradespeople and millwrights routinely specify this type of hardware for equipment mounting projects.

This leveling pad is suited for use in manufacturing facilities, mechanical rooms, HVAC equipment bases, compressor mounts, and other industrial settings where floor surfaces may be uneven or where machinery must be isolated from vibration. The 3-inch base diameter provides a stable footprint, and the studded mount design allows direct threading into equipment frames or base plates. It is appropriate for both new equipment installations and field retrofits where leveling adjustment is needed.

Key Features

• 5,500 lb load capacity supports heavy commercial and industrial equipment
• 3/4-10 bolt thread for secure, standard threaded mounting
• Pivotal design self-adjusts to uneven or sloped floor surfaces
• 3-inch base diameter distributes load and resists tipping
• Studded mount style threads directly into equipment base plates
• Compact 1.52 lb unit weight for easy handling during installation

Compatibility

Designed as an OEM-style replacement or direct-install leveling pad for commercial and industrial equipment requiring a 3/4-10 stud mount with a 5,500 lb load rating and a 3-inch base diameter.

Installation Notes

Installation is typically performed by millwrights, mechanical contractors, or qualified maintenance technicians. Power down and de-energize all connected equipment before adjusting or replacing leveling pads under load. Ensure the mounting surface thread is clean and undamaged before threading the stud into the equipment base. Verify that floor surfaces can support the full rated load per applicable building or mechanical codes before finalizing placement.
