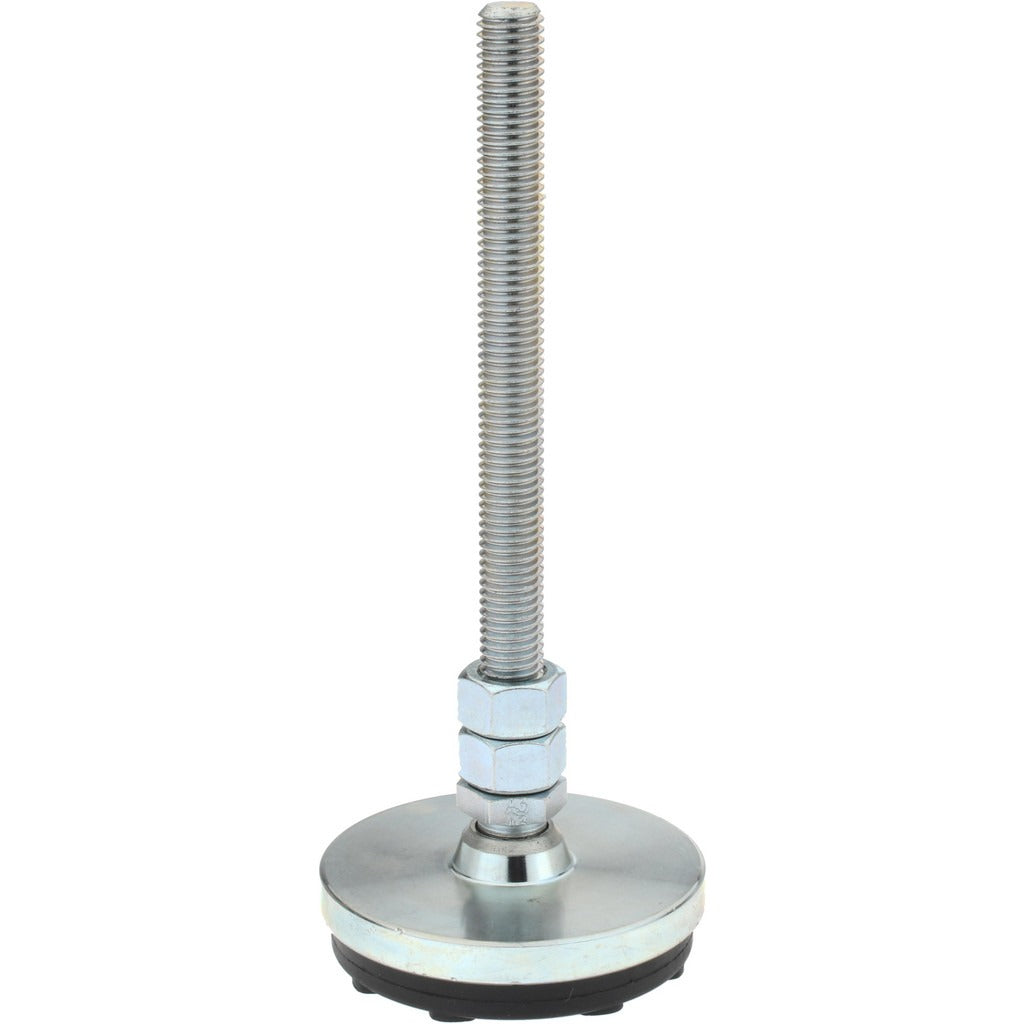

Gibraltar LP3-B6L-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP3-B6L-G is a studded pivotal leveling mount designed to support heavy equipment and machinery requiring precise floor-level adjustment. Built with a steel stud and a rubber pad base, this mount absorbs vibration while keeping equipment stable on uneven surfaces. It carries a rated load capacity of 3,000 pounds and features a 1/2-13 bolt thread size for compatibility with standard fastener hardware. The overall length is approximately 7-43/64 inches, and the base diameter measures 3 inches. This mount is suited for industrial, mechanical, and trade-service environments where equipment leveling and vibration dampening are required.

This leveling mount is commonly used beneath HVAC units, compressors, pumps, motors, and other floor-mounted mechanical equipment. The pivotal design allows the rubber foot to self-adjust to slight floor irregularities, maintaining full pad contact without shimming. Installation is typical in both commercial mechanical rooms and light industrial settings where equipment anchoring and leveling are part of a standard setup procedure.

Key Features

• 3,000 lb load capacity for heavy mechanical equipment support
• Pivotal rubber pad self-adjusts to uneven floor surfaces
• Steel stud construction for durability and thread integrity
• 1/2-13 bolt thread size for compatibility with standard hardware
• 3 inch base diameter provides a stable footprint
• Approximately 7-43/64 inches overall length

Compatibility

Designed as an OEM-style replacement or upgrade leveling foot for floor-mounted mechanical and industrial equipment requiring 1/2-13 threaded stud mounts with up to 3,000 lb load capacity.

Installation Notes

Installation is typically performed by mechanical or HVAC technicians during equipment placement or service. Power down and de-energize all connected equipment before adjusting or replacing leveling mounts. Use appropriate wrenches for the 1/2-13 thread engagement and ensure the stud is fully seated before loading the equipment. Verify that all mounts are evenly adjusted to distribute load and prevent rocking before returning equipment to service.
