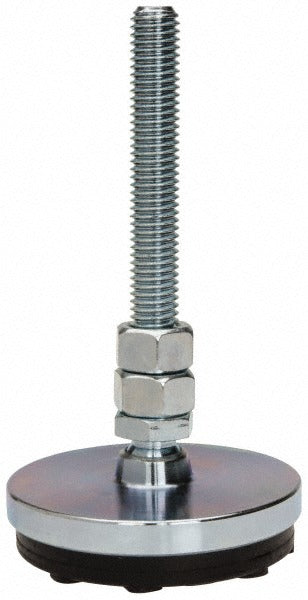

Gibraltar LP3-B4L-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP3-B4L-G is a studded pivotal leveling mount designed to support heavy equipment while allowing minor angular adjustment at the base. Rated for 3,000 lb load capacity, it uses a steel stud with a 1/2-13 bolt thread and a rubber pad base to reduce vibration transfer and protect floor surfaces. The mount measures approximately 5.69 inches in length with a 3 inch base diameter, making it suited for mid-range industrial and mechanical equipment installations. HVAC technicians, millwrights, and mechanical contractors install these mounts to level condensing units, compressors, pumps, and similar equipment on uneven concrete or equipment pads.

This leveling mount is used in commercial and light industrial settings where equipment must be leveled and isolated from floor vibration. Typical applications include mounting rooftop and ground-level HVAC condensing units, air compressors, pumps, and fabricated equipment skids. The rubber pad dampens vibration and prevents the mount from walking on smooth concrete. The pivotal design compensates for slight surface irregularities without requiring shims, making it a practical choice for fast field installations on irregular slabs or equipment pads.

Key Features

• 3,000 lb static load capacity for mid-duty equipment support
• 1/2-13 steel stud thread for secure attachment to equipment frames
• 3 inch base diameter rubber pad reduces vibration transmission and floor contact noise
• Pivotal design compensates for minor surface irregularities without shimming
• Steel stud construction provides durability in indoor and sheltered outdoor installations
• Approximately 5.69 inch overall length suits standard equipment leg heights

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for equipment with 1/2-13 threaded mounting points requiring a pivotal rubber-pad base up to 3,000 lb capacity.

Installation Notes

Installation is typically performed by HVAC technicians, mechanical contractors, or millwrights. De-energize and lock out all equipment before installing or adjusting leveling mounts. Thread the stud into the equipment frame to the appropriate engagement depth before positioning the unit on the mounting surface, then adjust level using a calibrated level and tighten the jam nut if present. Do not exceed the rated 3,000 lb load capacity per mount, and ensure the rubber pad sits flat and fully in contact with the floor surface to maintain rated isolation performance.
