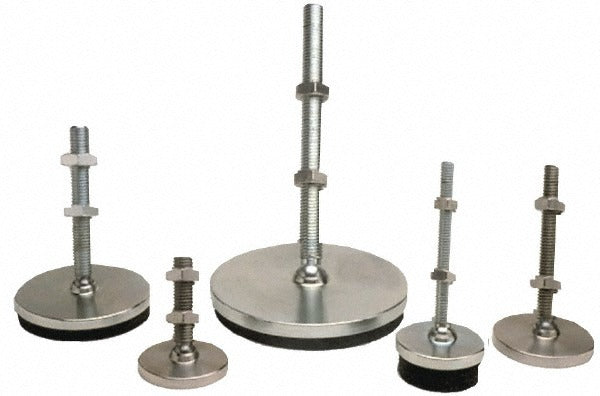

Gibraltar LP2-C6-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR LP2-C6-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment bases, and structural frames. The pivoting pad allows the mount to compensate for uneven or angled surfaces while maintaining full contact and load distribution. Built with a steel pad and steel stud, this mount is rated for a 5,000 lb load capacity, making it suitable for heavy industrial and commercial applications. Machinists, millwrights, and facilities maintenance technicians install this type of hardware during equipment alignment and anchoring work.

This leveling mount is used in industrial plant environments, manufacturing floors, and commercial facilities where heavy equipment must be leveled and secured to concrete or structural surfaces. The 5/8-11 bolt thread and 2.5 inch base diameter suit a wide range of machinery feet and equipment pad configurations. The pivotal design is particularly useful when equipment bases are not perfectly flat or when floor surfaces have minor slopes or irregularities.

Key Features

• 5,000 lb rated load capacity for heavy equipment support
• Pivoting pad design accommodates angled or uneven mounting surfaces
• 2.5 inch diameter steel base pad for broad load distribution
• 5/8-11 threaded steel stud for secure fastening
• Overall length of 7.25 inches provides adjustable height range
• All-steel construction for durability in industrial environments

Compatibility

Designed as a standard studded pivotal leveling mount for industrial machinery, equipment frames, and structural bases requiring a 5/8-11 threaded stud and a 2.5 inch base pad footprint.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during equipment setting and alignment procedures. Ensure the mounting surface is clean and capable of supporting the rated load before installation. Use appropriately rated fasteners and follow applicable facility and equipment manufacturer guidelines for torque and anchoring. Power down all associated equipment before adjusting or repositioning leveling mounts under load-bearing machinery.
