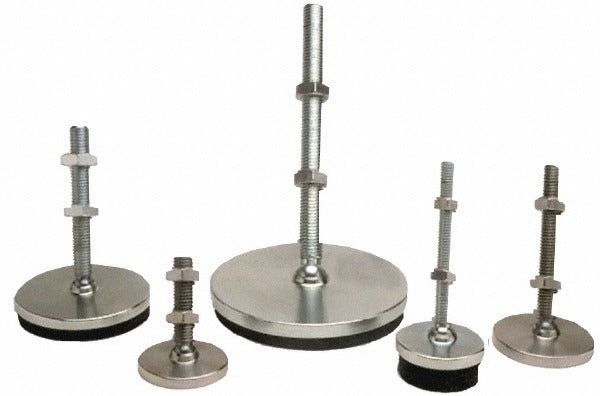

Gibraltar LP2-B6-G Studded Pivotal Leveling Mount 3500 Lb

Product Description

The GIBRALTAR LP2-B6-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The pivotal base allows angular adjustment to compensate for uneven floors, while the threaded steel stud enables precise height setting. Rated at 3,500 pounds load capacity, this mount handles demanding industrial and commercial applications. The steel pad base measures 2.5 inches in diameter, and the overall length is 7.25 inches. A 1/2-13 bolt thread size makes it compatible with standard hardware. Maintenance technicians, millwrights, and equipment installers are the typical trades that specify and install this type of mount.

This leveling mount suits applications where heavy machinery, workbenches, conveyor bases, or equipment frames require firm, level footing on concrete or structural floors. The pivotal design accommodates minor floor irregularities without placing undue stress on mounting hardware. Typical install scenarios include production floors, mechanical rooms, and utility areas where equipment must remain stationary and level under sustained load. The steel construction withstands shop floor conditions and repeated adjustment cycles over the service life of the equipment.

Key Features

• 3,500 lb load capacity for heavy industrial and commercial equipment support
• Pivotal base adjusts to uneven floor surfaces, reducing stress on mounting hardware
• 1/2-13 threaded steel stud for compatibility with standard bolting patterns
• Steel pad base at 2.5 inches diameter provides stable ground contact footprint
• 7.25 inch overall length allows adequate height adjustment range
• All-steel construction for durability in demanding shop and mechanical room environments

Compatibility

Designed as a standard-thread leveling mount for machinery, equipment frames, and fabricated assemblies requiring a 1/2-13 stud thread and up to 3,500 lb per-foot load support.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during equipment setting or re-leveling. Shut down and de-energize any connected equipment before adjusting or replacing leveling mounts under load. Use appropriate wrenches on the stud and jam nut to lock the mount at the desired height once level is confirmed. Verify that the floor substrate can support the combined load of the equipment and mount before final tightening.
