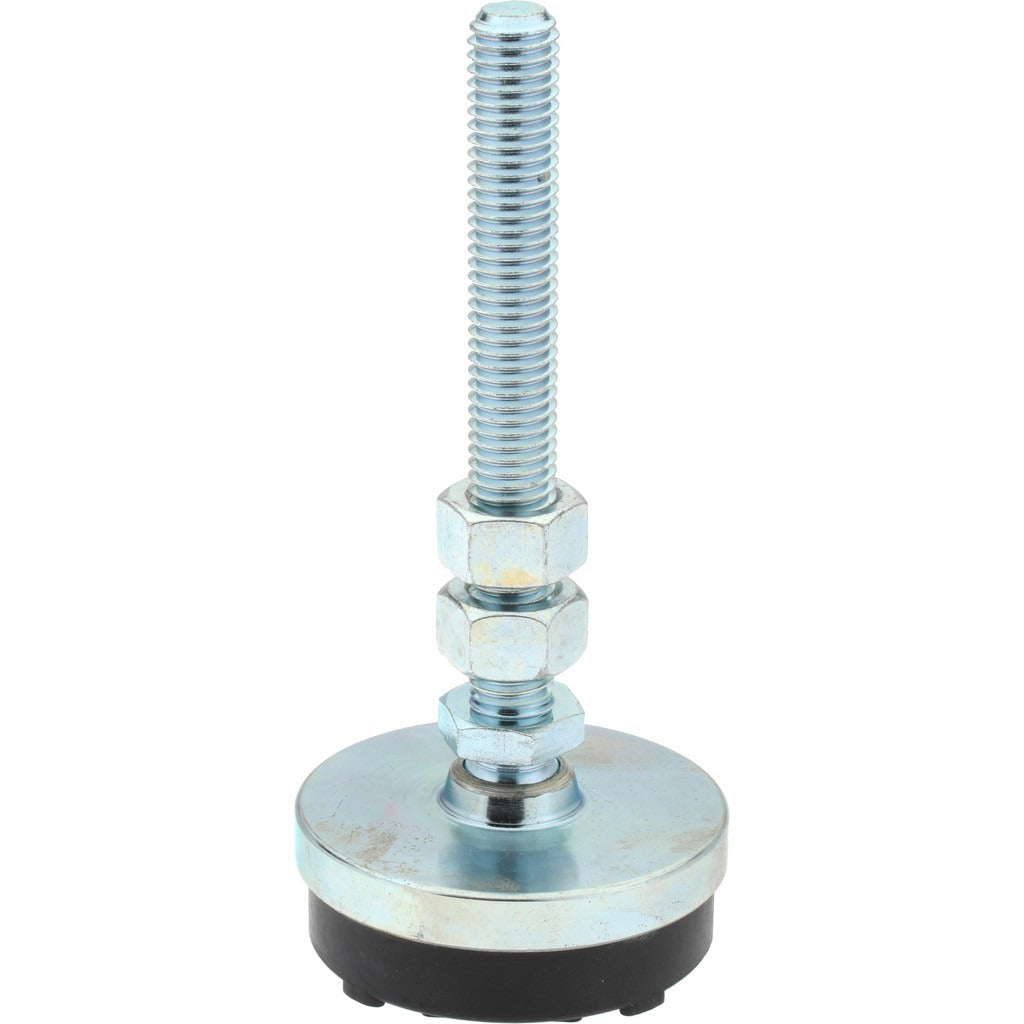

Gibraltar LP2-B4H-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP2-B4H-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial fixtures. The mount features a 1/2-13 threaded steel stud and a rubber base pad that compensates for minor floor irregularities while dampening vibration transfer. With a rated load capacity of 3,500 pounds, it handles heavy-duty static loads in production, workshop, and mechanical room environments. The overall length measures 5.8125 inches and the base diameter is 2.5 inches. Millwrights, maintenance technicians, and equipment installers use this type of mount during machinery installation and leveling operations.

This leveling mount is suited for industrial and commercial applications where precise leveling and vibration isolation are required at equipment feet. Typical installations include CNC machines, compressors, pumps, workbenches, and other floor-mounted equipment that require stable footing on concrete or finished floor surfaces. The pivotal design allows the stud to articulate slightly, accommodating base plates that are not perfectly perpendicular to the floor. It is sold individually, making it practical for replacing single worn or damaged feet without purchasing a full set.

Key Features

• 3,500 lb static load capacity supports heavy industrial equipment
• 1/2-13 threaded steel stud for secure attachment to equipment base plates
• Pivotal mount design accommodates minor angular misalignment between stud and floor
• Rubber base pad reduces vibration transmission and protects floor surfaces
• 2.5 inch base diameter provides a stable footprint
• 5.8125 inch overall length allows for leveling adjustment range

Compatibility

Designed as an OEM-style replacement or new-installation leveling foot for floor-mounted industrial and commercial equipment accepting a 1/2-13 threaded stud mount.

Installation Notes

Installation is performed by millwrights or maintenance technicians during equipment placement or re-leveling. De-energize and lock out all machinery before adjusting or replacing leveling mounts. Thread the stud into the equipment base plate tapped hole and adjust height until the equipment is level, confirmed with a precision level. Torque fasteners per the equipment manufacturer specifications and verify load is distributed evenly across all mount points before returning the machine to service.
