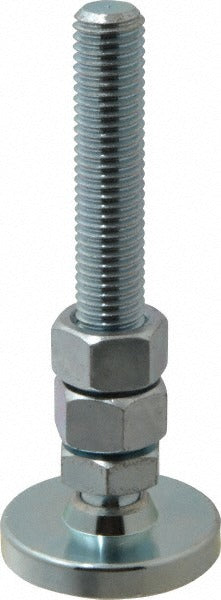

Gibraltar LP1-C4-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR LP1-C4-G is a studded pivotal leveling mount designed to support and level heavy industrial equipment, machinery bases, and fabricated frames. Rated for 5,000 lb load capacity, this mount features a 2-inch diameter steel pad and a steel stud that pivots to compensate for uneven floor surfaces, maintaining stable footing across minor angular variations. At 5.25 inches in length and weighing 0.64 pounds, it is compact enough to fit tight clearance installations. Millwrights, maintenance mechanics, and industrial tradespeople install this type of mount during equipment setup, alignment, and leveling operations.

This leveling mount is suited for stationary machinery, production equipment, workbenches, and fabricated steel frames in industrial, commercial, and manufacturing environments. The pivoting pad adjusts to slightly off-level concrete or steel floor surfaces without requiring shimming. The 5/8-11 bolt thread provides strong engagement with machine bases or mounting plates. Applications include equipment pads, motor bases, pump skids, and any installation where precise floor-level adjustment and load distribution are required.

Key Features

• 5,000 lb rated load capacity per mount
• Pivotal pad design compensates for uneven or angled floor surfaces
• Steel pad and steel stud construction for durability under load
• 5/8-11 bolt thread for secure engagement with machine bases
• 2-inch base diameter for compact footprint in tight installations
• 5.25-inch overall length suits standard mounting clearances

Compatibility

Designed as an OEM-style leveling mount for use with industrial machinery bases, fabricated steel frames, and equipment skids requiring adjustable floor support.

Installation Notes

Installation is performed by millwrights or maintenance mechanics during equipment placement and alignment. Ensure the mating base material is rated to accept the thread engagement and load before installing. Level equipment incrementally by adjusting each mount in sequence to distribute load evenly across all contact points. Follow applicable facility safety and lockout/tagout procedures before positioning heavy equipment over installed mounts.
