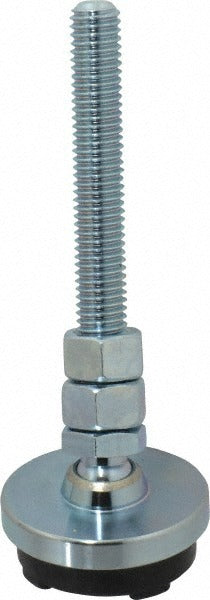

Gibraltar LP1-B4L-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP1-B4L-G is a studded pivotal leveling mount designed to support and level industrial equipment, machinery, and fabricated assemblies. It combines a steel threaded stud with a rubber base pad to provide both structural support and vibration dampening at the mounting point. Rated at 3,000 pounds load capacity, it suits heavy-duty stationary equipment installations where precise leveling and floor protection are required. The pivotal design allows the mount to self-adjust to minor floor irregularities. Millwrights, maintenance technicians, and equipment installers work with this type of hardware during machine installation and repositioning tasks.

This leveling mount is suited for use on machine tools, compressors, pumps, workbenches, and similar floor-mounted equipment in industrial, commercial, and light manufacturing environments. The rubber pad protects finished floors and reduces transmitted vibration. The steel stud threads into a tapped hole or through a mounting plate to secure and level the unit. It is sold individually and is appropriate wherever a single-point leveling foot with a 1/2-13 bolt thread is specified.

Key Features

• 3,000 lb rated load capacity for heavy-duty equipment support
• 1/2-13 bolt thread size for standard tapped-hole compatibility
• 2 inch base diameter rubber pad for floor protection and vibration dampening
• Pivotal base self-adjusts to uneven or slightly irregular floor surfaces
• Steel stud construction for durability under sustained static loads
• Compact profile at approximately 5-43/64 inches in length

Compatibility

Designed as a direct-fit leveling foot for equipment and machinery applications requiring a 1/2-13 threaded stud mount with a 2 inch rubber base pad.

Installation Notes

Installation is performed by millwrights or maintenance technicians using standard hand tools. Thread the stud into a pre-tapped hole or securing nut on the equipment base and adjust height before tightening the jam nut to lock the leveling position. Verify the equipment is de-energized and any stored mechanical energy is relieved before repositioning or installing leveling mounts. Do not exceed the rated load capacity of 3,000 pounds per mount point.
