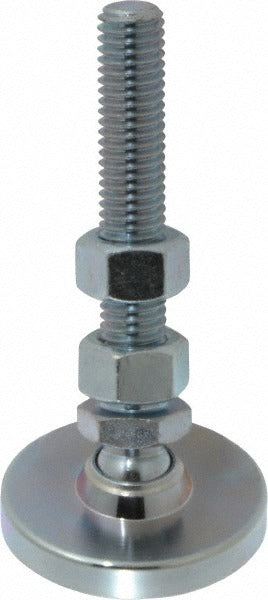

Gibraltar LP1-B3-G Studded Pivotal Leveling Mount 3500 Lb

Product Description

The GIBRALTAR LP1-B3-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment, and structural assemblies. The pivotal base allows for angular adjustment to compensate for uneven surfaces, while the steel pad and steel stud construction deliver reliable load-bearing performance. Rated for up to 3,500 pounds of load capacity, this mount is built for demanding industrial and commercial applications. The 1/2-13 bolt thread size and 4.25-inch overall length make it compatible with standard leveling foot configurations. Millwrights, maintenance technicians, and equipment installers commonly specify this type of mount during machine setup and alignment work.

This leveling mount is suited for use in industrial facilities, manufacturing environments, and commercial mechanical rooms where equipment must be leveled on concrete floors or structural pads. It is appropriate for supporting pumps, compressors, HVAC equipment, fabrication machinery, and similar stationary equipment that requires precise leveling and vibration isolation through a rigid foot mount. The pivoting pad accommodates slight surface irregularities without requiring full shimming.

Key Features

• 3,500 lb load capacity for heavy-duty equipment support
• Pivotal base pad accommodates angular misalignment on uneven surfaces
• Steel pad and steel stud construction for durability in industrial environments
• 1/2-13 bolt thread size fits standard leveling foot hardware
• 2-inch base diameter with 4.25-inch overall length
• Single-piece unit sold individually for flexible quantity ordering

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for stationary industrial and commercial equipment requiring a 1/2-13 threaded stud leveling foot with a 2-inch pivoting steel base pad.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during initial equipment placement or realignment service. De-energize and lock out all equipment before installing or adjusting leveling mounts. Thread the stud into the equipment base to the appropriate engagement depth and tighten the jam nut if applicable before lowering the equipment onto the pad. Verify load distribution across all mount points before returning equipment to service.
