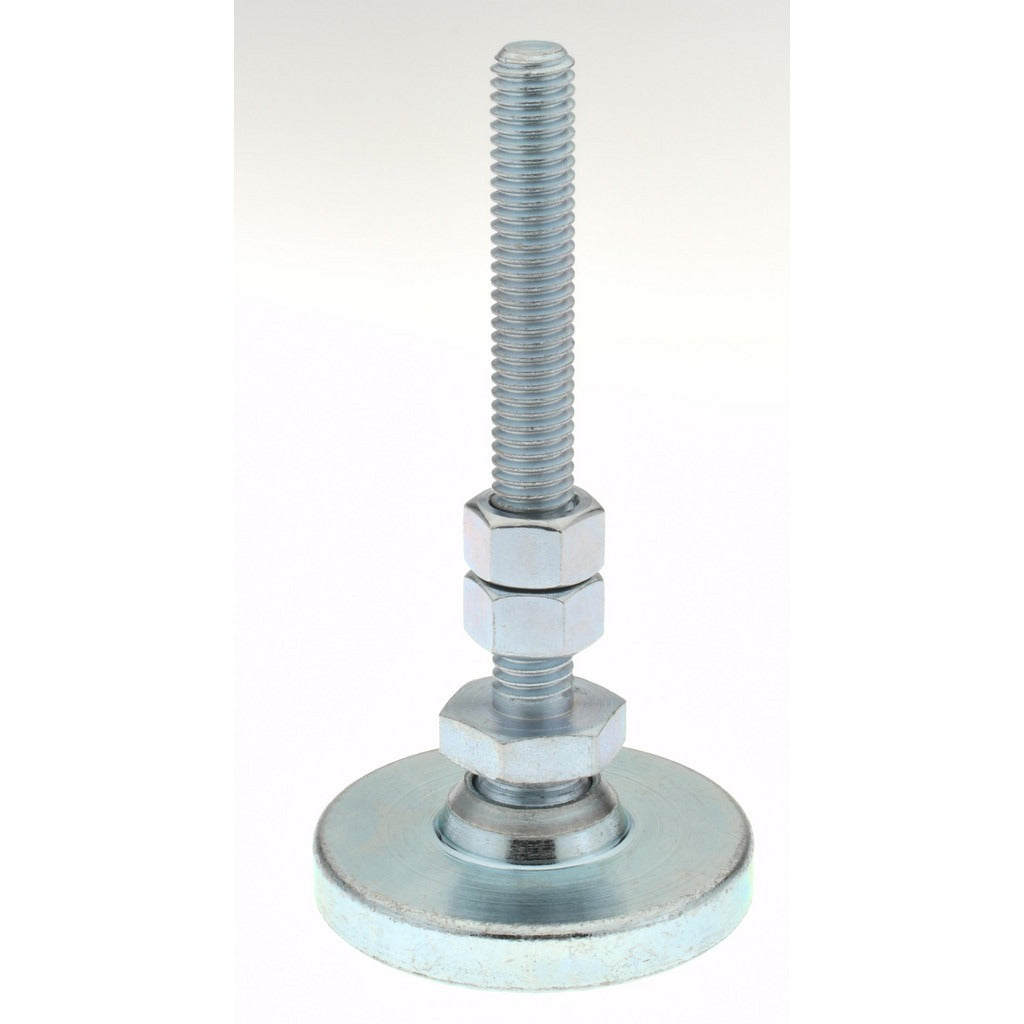

Gibraltar LP1-A3-G Studded Pivotal Leveling Mount 2000 Lb

Product Description

The GIBRALTAR LP1-A3-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The pivotal base allows for angular compensation on uneven floors, keeping mounted equipment level without shimming. The steel stud and steel pad construction handle demanding load conditions. With a rated load capacity of 2,000 pounds and an overall length of 4.25 inches, this mount suits heavy-duty stationary equipment installations where precise leveling and vibration isolation are required. Millwrights, maintenance technicians, and mechanical contractors install this type of hardware during equipment commissioning and alignment work.

This leveling mount is suited for industrial and commercial equipment installations including machine tools, compressor bases, pump skids, HVAC mechanical equipment, and fabricated support frames. The 2-inch base diameter and threaded steel stud allow integration into standard tapped mounting holes. The pivotal pad design accommodates slight floor irregularities and surface angles, reducing stress on the stud and maintaining consistent load distribution across the base pad.

Key Features

• 2,000 pound load capacity for heavy stationary equipment support
• Pivotal base pad compensates for uneven or angled floor surfaces
• Steel stud and steel pad construction for durability under sustained load
• 2 inch base diameter provides stable footprint
• 4.25 inch overall length accommodates standard mounting depths
• 3/8-16 bolt thread size for compatibility with common tapped hole patterns

Compatibility

Designed as an OEM-style replacement or standard leveling mount for industrial machinery, equipment skids, and mechanical support frames requiring a 3/8-16 threaded stud and a 2 inch base diameter pad.

Installation Notes

Installation is performed by millwrights or mechanical technicians as part of equipment leveling and alignment procedures. De-energize and lock out all connected equipment before adjusting or replacing leveling mounts under load. Use appropriate wrenches for the 3/8-16 stud thread and verify that the mating tapped hole is clean and fully threaded before installation. Do not exceed the rated 2,000 pound load capacity per mount.
