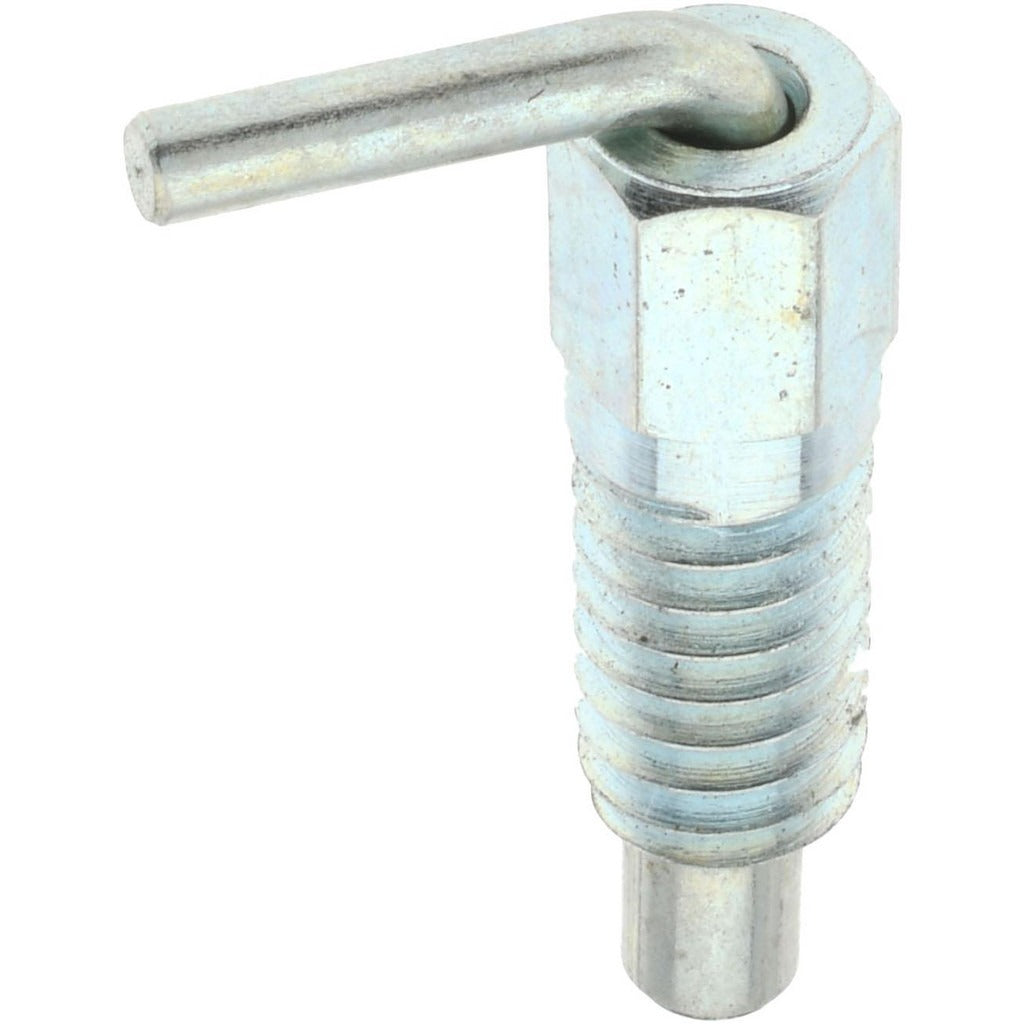

Gibraltar LN-0-G Steel L Handle Plunger 1/4-20

Product Description

The GIBRALTAR LN-0-G is a steel L handle plunger designed for indexing, positioning, and clamping applications in industrial and mechanical assemblies. It features a 1/4-20 thread with a 0.5 inch thread length and a non-locking plunger design. The plunger diameter measures 0.16 inches with a projection of 0.2 inches beyond the body. Initial end force is 0.12 pounds, increasing to a final end force of 0.5 pounds under full compression. The body length is 0.75 inches and the overall plunger length is 0.75 inches. This component is installed by machinists, maintenance technicians, and mechanical assemblers working with fixtures, jigs, and positioning hardware.

The LN-0-G is suited for light-duty indexing and detent applications where a compact, manually operated plunger is needed. Typical installations include fixture plates, machine guarding, enclosure panels, and adjustable mechanical assemblies that require repeatable positioning without a locking mechanism. The L-style handle allows for hand-tightening and quick adjustment without tools. The steel construction provides durability in shop and light industrial environments.

Key Features

• Non-locking plunger design for quick manual adjustment and repositioning
• L handle configuration allows tool-free installation and operation
• 1/4-20 thread with 0.5 inch thread length for standard hardware compatibility
• End force range from 0.12 pounds initial to 0.5 pounds final for light-duty detent applications
• Steel construction for durability in industrial and shop environments
• Compact body length of 0.75 inches for tight-clearance installations

Compatibility

Designed as an OEM-style replacement or standard component for fixtures, jigs, and mechanical assemblies using 1/4-20 threaded plunger hardware in light industrial applications.

Installation Notes

Installation is performed by hand or with light tooling into a tapped 1/4-20 hole. Ensure the mating thread is clean and free of debris before threading in the plunger body. Disengage or secure any moving components of the assembly before installing or replacing the plunger. Do not overtighten, as the compact thread engagement is intended for manual-force applications only.
