Gibraltar LLS-7-G Locking L Handle Plunger 5/8-11

Product Description

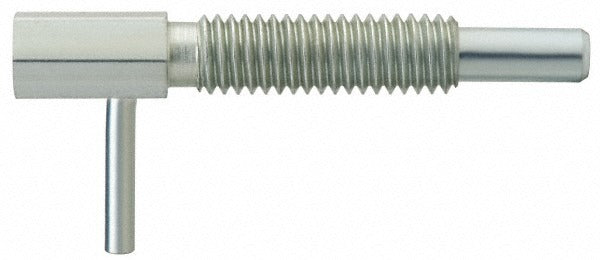

The GIBRALTAR LLS-7-G is a locking L handle plunger designed for use in industrial positioning, fixturing, and assembly applications where a secure, repeatable hold is required. Featuring a 5/8-11 thread and a stainless steel construction, this plunger delivers an initial end force of 1 pound and a final end force of 5 pounds. The L-style handle provides a positive grip for quick engagement and release without tools. With a thread length of 1.82 inches and a plunger diameter of 0.38 inches, it fits a range of standard threaded fixtures and jigs. Machinists, fabricators, and maintenance technicians install this type of plunger in production tooling and equipment panels.

The LLS-7-G is suited for light-duty positioning tasks in manufacturing, fabrication, and maintenance environments. Its stainless steel body resists corrosion, making it appropriate for use in wash-down areas or environments with moderate moisture exposure. The locking L handle format allows the plunger to be set and locked in position without continuous hand pressure, which is useful in repetitive assembly operations or adjustable stop applications. It is sold individually and installs directly into any component with a matching 5/8-11 threaded hole.

Key Features

• 5/8-11 thread size for compatibility with standard threaded fixtures and tooling
• Locking L handle design holds plunger in the retracted position without continuous hand engagement
• Stainless steel construction resists corrosion in moisture-exposed or wash-down environments
• Initial end force of 1 pound with a final end force of 5 pounds for consistent, repeatable positioning
• Compact body length of 3.05 inches with a 1-inch plunger projection for use in space-limited assemblies
• Sold as a single unit with no minimum order requirement beyond one piece

Compatibility

Designed as a direct-install locking L handle plunger for any fixture, jig, or equipment panel with a standard 5/8-11 threaded hole requiring a spring-loaded positioning plunger.

Installation Notes

Installation is performed by hand or with a wrench applied to the hex flat, threading the plunger body into a matching 5/8-11 tapped hole to the appropriate engagement depth. Ensure the mating thread is clean and free of debris before installation. Do not overtighten, as this can distort the plunger housing or damage the thread. Locking and releasing the handle should be checked after installation to confirm smooth, unobstructed plunger travel.
