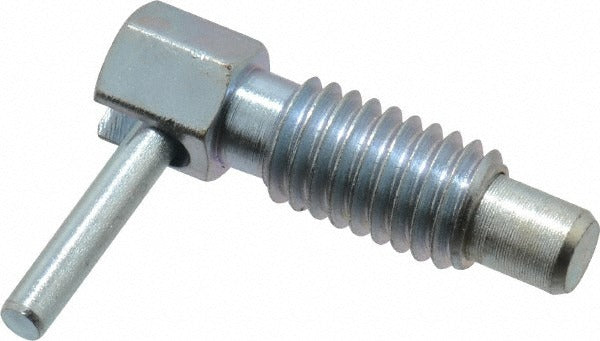

Gibraltar LL-2-G Locking L Handle Plunger 3/8-16 Steel

Product Description

The GIBRALTAR LL-2-G is a locking L handle plunger designed for use in positioning, indexing, and clamping applications across industrial and trade environments. Machined from steel, it features a 3/8-16 thread and a 0.62-inch thread length. The plunger delivers an initial end force of 0.25 pounds and a final end force of 1.25 pounds, making it suitable for light-duty locking and locating tasks. The L-style handle provides a compact grip in tight clearance areas. Machinists, toolmakers, maintenance technicians, and assembly line personnel are the typical installers and end users of this hardware component.

This plunger is used in jigs, fixtures, machine tools, and fabrication equipment where repeatable positioning or panel retention is needed. Its compact body length of 1.13 inches suits installations where space is limited. The locking handle style allows the plunger to be set and held in position without additional fasteners. It is well suited to light industrial machine assembly and tooling setups in manufacturing and maintenance environments.

Key Features

• Steel construction for durability in industrial service
• Locking L handle style for compact grip and positive retention
• 3/8-16 thread for standard machine thread fitment
• Initial end force of 0.25 pounds rising to 1.25 pounds final end force
• Plunger diameter of 0.25 inches with a projection of 0.30 inches
• Compact body length of 1.13 inches for tight clearance installations

Compatibility

Designed as a standard 3/8-16 threaded locking L handle plunger for use in jigs, fixtures, and machine tooling applications requiring a 0.25-inch plunger diameter.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using standard hand tools. Ensure the mating threaded bore is clean and properly sized for 3/8-16 thread engagement before installing. Do not overtighten the plunger body, as this can affect plunger travel and end force performance. Verify plunger projection and clearance against the application geometry before final assembly.
