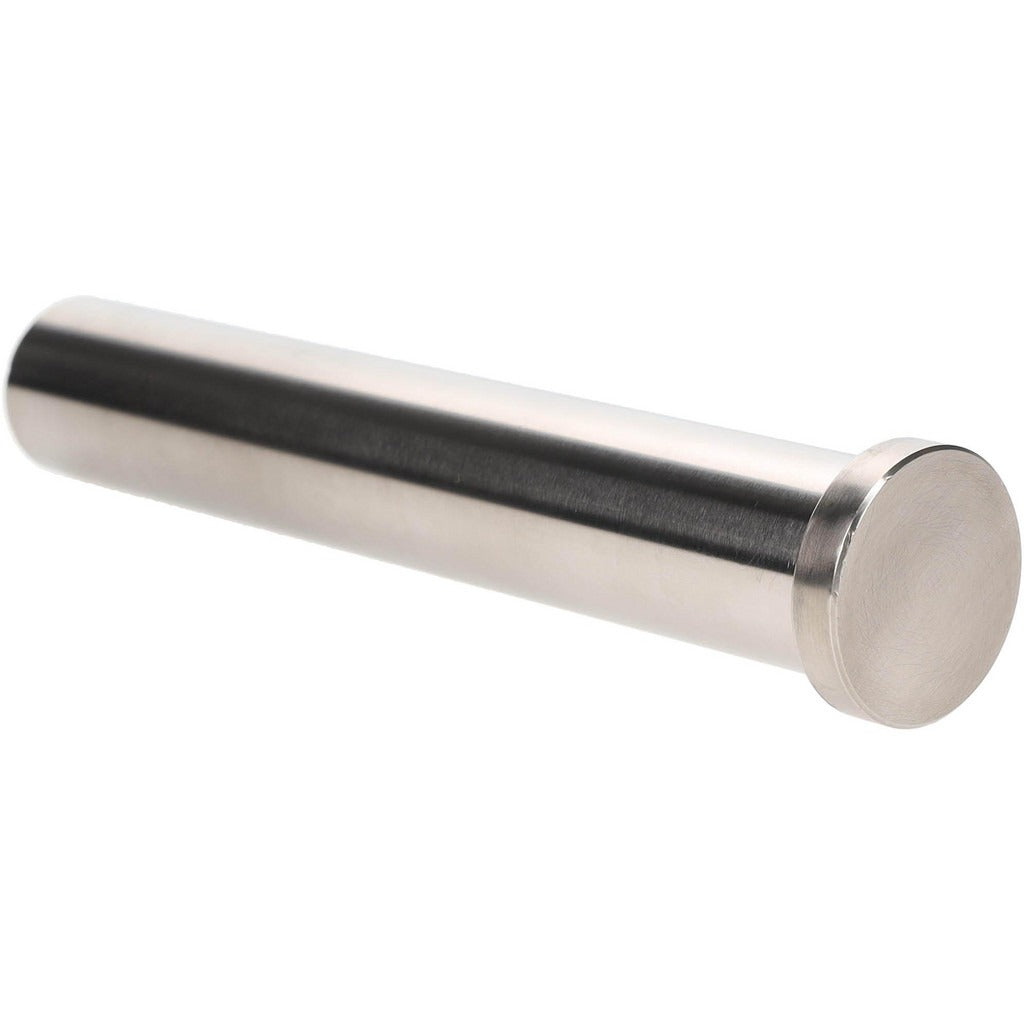

Gibraltar LEP2154-G Straight Ejector Pin 1 in Steel

Product Description

The GIBRALTAR LEP2154-G is a straight ejector pin used in injection mold tooling and die sets to push finished parts out of mold cavities at the end of each cycle. It has a pin diameter of 1 inch and an overall length of 6 inches, with a 1-1/4 inch head diameter and a 1/4 inch head height. The pin is machined from steel for the strength and wear resistance required in production mold environments. Mold makers, toolroom machinists, and die maintenance technicians are the primary installers and service personnel for this component.

This ejector pin is suited for use in plastic injection molds, die casting tooling, and stamping dies where a 1 inch diameter ejector is required. It fits into ejector pin retainer plates and is driven by the ejector system of the mold or die set. The straight profile and standard head geometry make it a direct-fit replacement in existing mold bases that are dimensioned for this pin size. Applications span both production and prototype tooling across industrial and manufacturing settings.

Key Features

• 1 inch pin diameter provides substantial cross-section for high-ejection-force applications
• 6 inch overall length suits standard mold base configurations requiring this reach
• 1-1/4 inch head diameter seats securely in ejector retainer plate pockets
• 1/4 inch head height maintains proper retainer plate clearance
• Steel construction delivers the hardness and durability needed in cyclic mold operation

Compatibility

Designed as an OEM-style replacement or spare ejector pin for injection mold bases and die sets requiring a straight ejector pin with a 1 inch pin diameter and 6 inch overall length.

Installation Notes

Ejector pins are installed and serviced by trained toolroom machinists or mold maintenance technicians. The mold or die set must be fully de-energized, press-locked out, and cooled before any ejector system work begins. Pins should be checked for fit and free movement in the retainer plate before closing the mold. Do not force an oversized pin into a bore, as this can damage the retainer plate or crack the pin.
