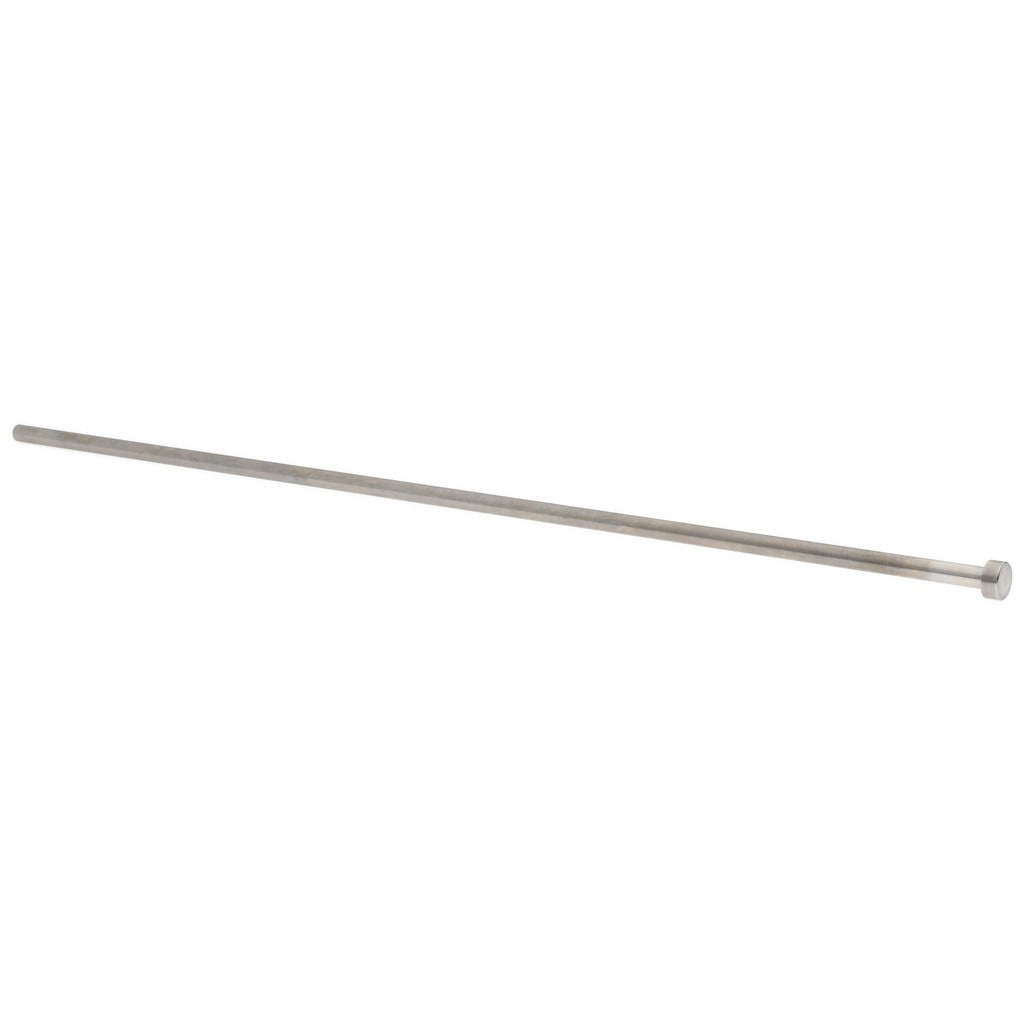

Gibraltar LEP2125-G Straight Ejector Pin 15/64 in Steel

Product Description

The GIBRALTAR LEP2125-G is a straight ejector pin designed for use in injection mold tooling and die applications. Machined from steel with a nitride finish for improved surface hardness and wear resistance, this pin measures 15/64 inches in pin diameter and 14 inches in overall length, with a usable pin length of 13.812 inches. The head measures 13/32 inches in diameter and 3/16 inches in height. It is installed and serviced by toolmakers, mold technicians, and precision machinists working on plastic injection molds and stamping dies.

This ejector pin is suited for standard straight-pin ejection applications in injection mold bases and tooling assemblies. The nitride finish reduces friction and galling at the pin-bushing interface, extending service life in high-cycle mold environments. Its dimensions follow conventional ejector pin standards, making it a practical replacement option for worn or broken pins in existing mold plates.

Key Features

• Nitride finish provides improved surface hardness and wear resistance at the pin-bore interface
• 15/64 inch pin diameter for precise fitment in standard mold tooling
• 13.812 inch usable pin length with 14 inch overall length
• 13/32 inch head diameter and 3/16 inch head height for positive seating in ejector plates
• Steel construction for durability in repetitive high-cycle molding operations

Compatibility

Designed as an OEM-style replacement straight ejector pin for use in standard injection mold tooling and die assemblies requiring a 15/64 inch pin diameter.

Installation Notes

Ejector pin replacement is performed by qualified toolmakers or mold technicians. Always ensure the mold is fully de-energized, cooled, and safely supported before disassembling ejector plates. Verify pin diameter and length tolerances against the existing bushing and plate specifications before installation. Forcing an improperly sized pin can damage the mold plate bore.
