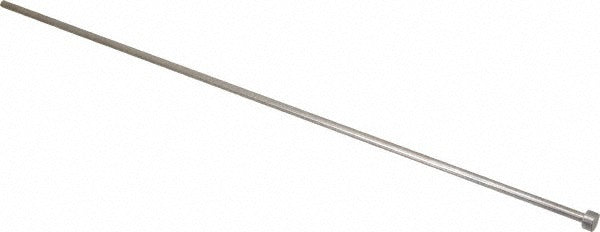

Gibraltar LEP2116-G Straight Ejector Pin 11/64 in Steel

Product Description

The GIBRALTAR LEP2116-G is a straight ejector pin designed for use in injection mold tooling applications. Machined from steel with a nitride finish, this pin measures 11/64 inches in pin diameter, 14 inches in overall length, and 13.812 inches in pin length. The head diameter is 11/32 inches with a head height of 3/16 inches. The nitride finish provides surface hardness that resists wear and galling during repeated mold cycling. Toolmakers, moldmakers, and die maintenance technicians rely on ejector pins of this type to push finished parts clear of the mold cavity at the end of each injection cycle.

This ejector pin is suited for use in plastic injection molds and die casting tooling in both production and prototype shop environments. Its straight geometry fits standard ejector pin retainer plates without modification. The 11/64-inch pin diameter and 14-inch overall length make it applicable to deeper mold cavities requiring extended pin reach. Sold individually, it serves as a direct replacement or spare for mold maintenance and repair.

Key Features

• Straight ejector pin geometry for standard retainer plate compatibility
• Steel construction with nitride finish for increased surface hardness and wear resistance
• 11/64-inch pin diameter with 11/32-inch head diameter
• 14-inch overall length with 13.812-inch pin length for deep-cavity applications
• 3/16-inch head height for positive seating in retainer plates
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as an OEM-style replacement or maintenance spare for injection mold and die tooling applications requiring a straight ejector pin with an 11/64-inch pin diameter and 14-inch overall length.

Installation Notes

Ejector pin replacement is performed by qualified toolmakers or mold maintenance technicians. Always confirm the mold is fully cooled, depressurized, and locked out before opening the ejector system. Verify pin diameter, head diameter, and overall length match the retainer plate and mold specification before installation. Do not force or modify pin geometry to fit non-matching retainer plates.
