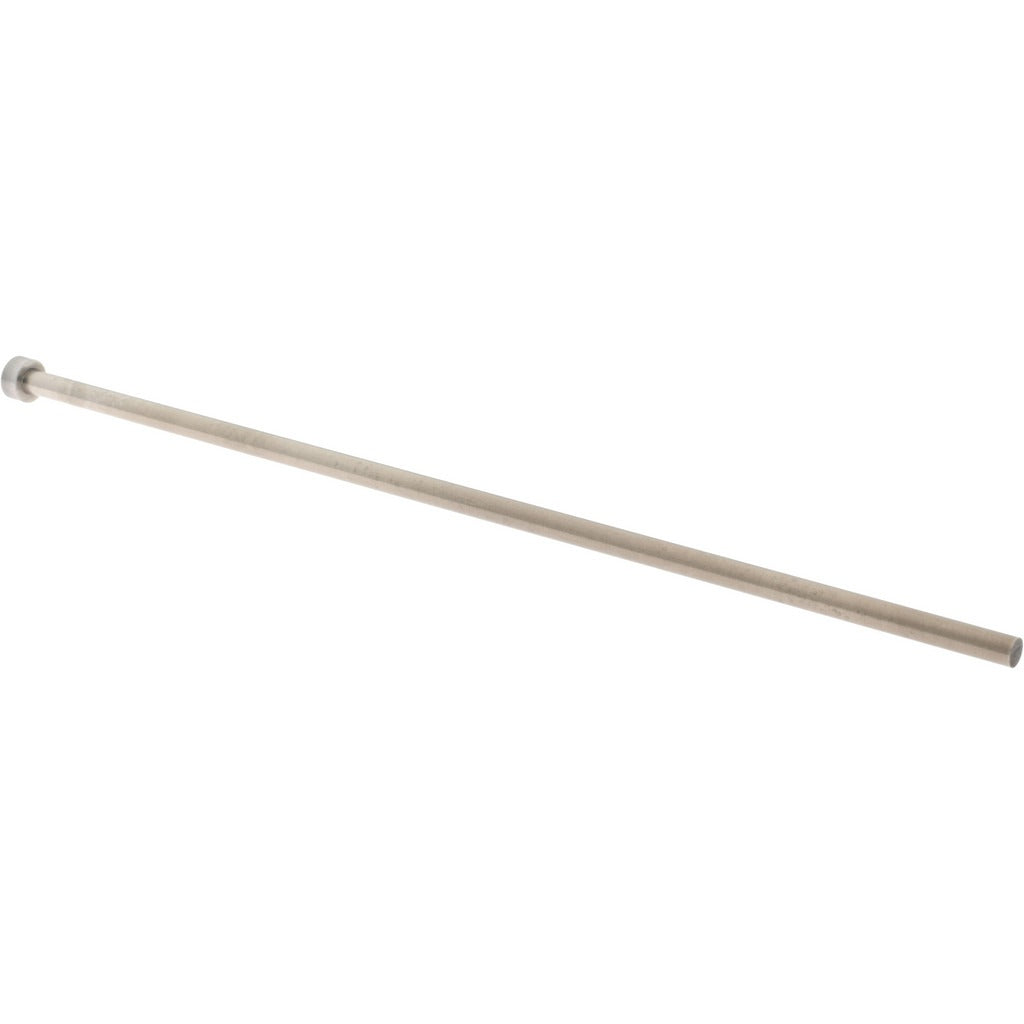

Gibraltar LEP2111-G Straight Ejector Pin 9/64 in Steel

Product Description

The GIBRALTAR LEP2111-G is a straight ejector pin designed for use in injection mold tooling and die casting applications. It transfers ejection force to push finished parts out of mold cavities at the end of each cycle. Machined from steel with a nitride finish for surface hardness and wear resistance, this pin measures 9/64 inches in diameter with an overall length of 6 inches. The 1/4-inch head diameter and 1/8-inch head height seat securely in standard ejector plate configurations. Installation and replacement are performed by moldmakers, toolroom machinists, and mold maintenance technicians.

This ejector pin is suited for plastic injection molds, die casting dies, and progressive stamping tooling where straight ejector pins are the specified ejection method. The nitride surface treatment improves galling resistance and extends service intervals in high-cycle production environments. With a pin length of 5-7/8 inches and a compact head profile, this pin fits standard ejector retainer plate pockets found in both prototype and production tooling. Sold individually, making it practical for single-pin replacement without purchasing in bulk.

Key Features

• Steel construction with nitride finish for surface hardness and wear resistance
• 9/64-inch pin diameter suits fine-detail mold ejection requirements
• 6-inch overall length with 5-7/8-inch pin length for standard ejector plate stack heights
• 1/4-inch head diameter and 1/8-inch head height for positive seating in ejector retainer plates
• Sold as a single unit — direct replacement without minimum multi-pack purchase

Compatibility

Designed as an OEM-style replacement straight ejector pin for injection molds and die casting tooling that specify a 9/64-inch diameter straight ejector pin with a 6-inch overall length and standard head dimensions.

Installation Notes

Ejector pin replacement is performed by qualified moldmakers or toolroom technicians with the mold fully de-energized, cooled, and removed from the press. Verify pin diameter, head diameter, head height, and overall length against the mold drawing before installation. Pins should be checked for straightness and surface condition prior to reinstallation. Follow all applicable shop safety procedures when working with mold components under spring or hydraulic preload.
