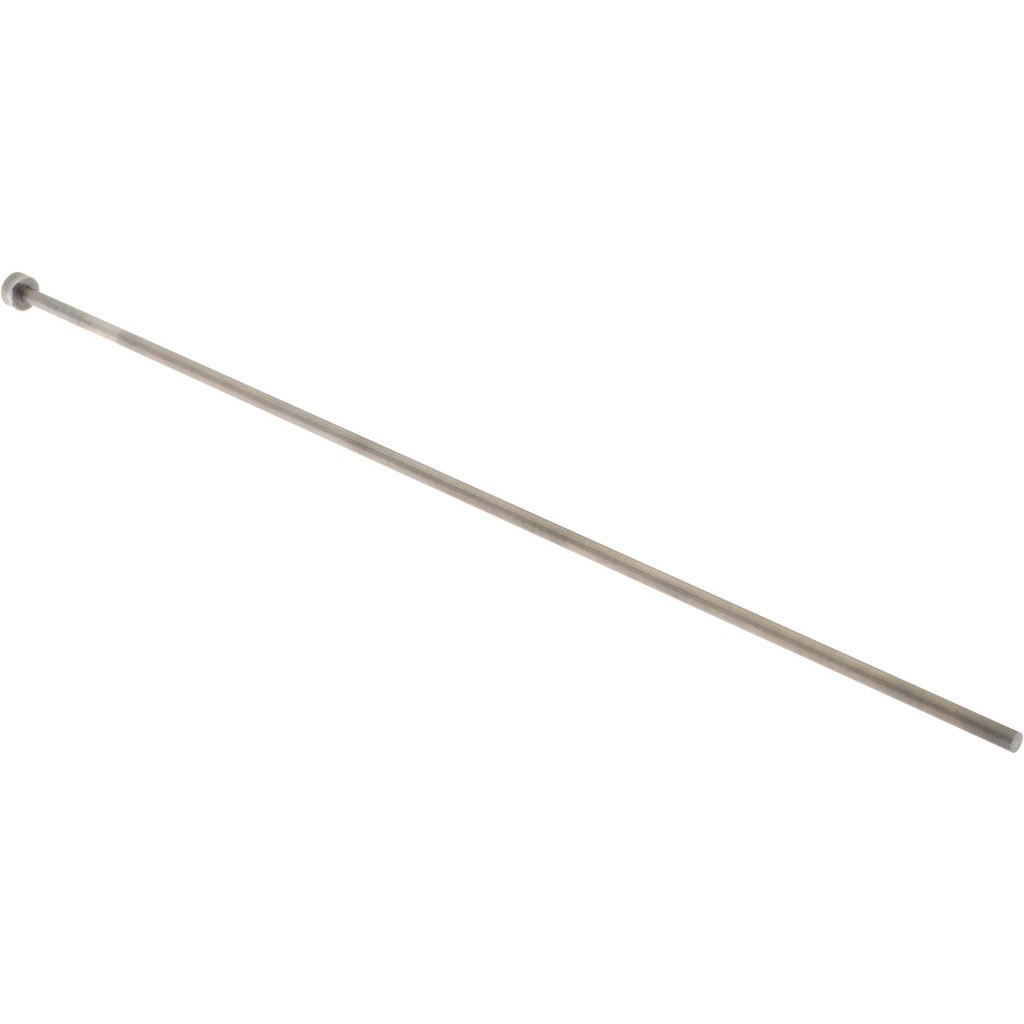

Gibraltar LEP2106-G Straight Ejector Pin 7/64 in Steel

Product Description

The GIBRALTAR LEP2106-G is a straight ejector pin designed for use in injection molds and die casting tooling. It serves to push finished parts out of a mold cavity at the end of each cycle. The pin features a 7/64 inch diameter shaft with an overall length of 8 inches and a total pin length of 7-7/8 inches. Constructed from steel with a nitride finish, it delivers the surface hardness and wear resistance required for high-cycle mold applications. Installation is handled by toolmakers and mold technicians working in production or maintenance environments.

This ejector pin is suited for plastic injection molds and die casting tools in both production shop and toolroom settings. Its 1/4 inch head diameter and 1/8 inch head height conform to standard ejector pin retainer plate configurations, making it a direct fit in conventional two-plate and three-plate mold designs. The nitride surface treatment resists galling and extends service life under repetitive ejection loads.

Key Features

• 7/64 inch pin diameter for precise fit in standard mold bores
• 8 inch overall length accommodates deeper mold bases
• Steel construction with nitride finish for hardness and wear resistance
• 1/4 inch head diameter fits standard ejector retainer plates
• 1/8 inch head height maintains proper seating depth in retainer plates

Compatibility

Designed as an OEM-style replacement or spare ejector pin for injection molds and die casting tooling that accept straight ejector pins with a 7/64 inch pin diameter and standard head dimensions.

Installation Notes

Ejector pins are installed and serviced by toolmakers or mold maintenance technicians. The mold must be fully de-energized and at a safe handling temperature before any ejector system work begins. Pins should be inspected for straightness and surface condition before installation to prevent premature wear or breakage in the mold base.
